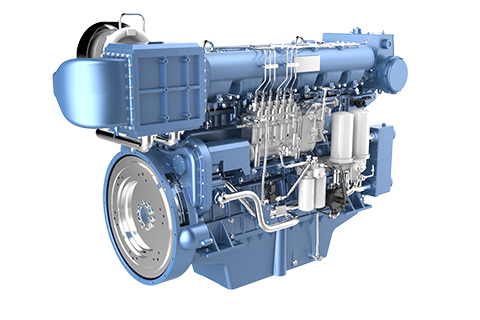

weichai 8170zc1000-5 diesel engine for fishing boat

Model-Specific Data (8170ZC1000-5):

• Aspiration: Turbocharged & Aftercooled (TA)

• Rated Power: 735 kW / 1000 Ps

• Speed: 1500 r/min

• Fuel System: Mechanical Pump

• Emission Standard: IMO II

• Power Rating: P1

• Dimensions (L×W×H): 2650 × 1040 × 1818 mm

• Net Weight: 3800 kg

General Parameters:

• Engine Type: Four-stroke, water-cooled, in-line, turbocharged, and aftercooled

• Number of Cylinders: 8

• Displacement: 36.2 L

• Bore & Stroke: 170 × 200 mm

• Idle Speed: 450-650 r/min

• Rotation (Facing Flywheel): Counter-clockwise

• Noise Level: ≤105 dB(A)

• Torque Reserve: 20-34%

• Oil Consumption Rate: ≤0.5 g/kW.h

• Minimum Fuel Consumption Rate: 197 g/kW.h

  8170zc1000-5  SPARE PARTS MANUAL LIST


• 170Z.03.19        Gasket block 170Z.03.19 for Weichai Deutz 170Z diesel engine with RKO

• 170Z.24.12        Reinforcement bolt 170Z.24.12 for 8170ZC engine

• 170Z.05.20.04     Connecting rod bolt 170Z.05.20.04 for 8170ZC engine with RKO

• GB/T5783-8.8-HY   Hex bolt B8x20 GB/T5783-8.8-HY for 8170ZC engine

• 170Z.02.10.03     Flywheel ring gear 170Z.02.10.03 for 8170ZC engine

• 12VB.03.60B       Adjustment screw 12VB.03.60B

• 170Z.03.20.06     Cylinder head liner 170Z.03.20.06 for Weichai 170Z diesel engine

• 170Z.01.38        Upper frame liner 170Z.01.38 for Weichai 170Z with RKO

• 170Z.05.07        Connecting rod liner 170Z.05.07 for Weichai 170Z with RKO

• 12VB.05.10.04A    Connecting rod bearing shell 12VB.05.10.04A for Jinan Diesel B6190 with RKO

• 12VB.05.10.05A    Connecting rod bearing shell 12VB.05.10.05A for Jinan Diesel B6190 with RKO

• 12VB.01.05        Bushing 12VB.01.05 for Jinan Diesel 8190

• 170Z.05.20.02     Bushing 170Z.05.20.02 for 8170ZC engine

• 511.01.51A        Cylinder liner 511.01.51A for Jinan Diesel B6190 with RKO

• 617001180004      Cylinder liner 617001180004 for 8170ZC with RKO

• 12V.10.30.10      Filter sleeve 12V.10.30.10 for Jinan Diesel B6190

• YSEB0-3           Pressure sensor YSEB 0-3 for Jinan Diesel B6190ZLCD-2

• 160A.10.03        Plug 160A.10.03 for Weichai engine

• 170Z.05.02        Trapezoidal ring 170Z.05.02 for Weichai diesel engine
