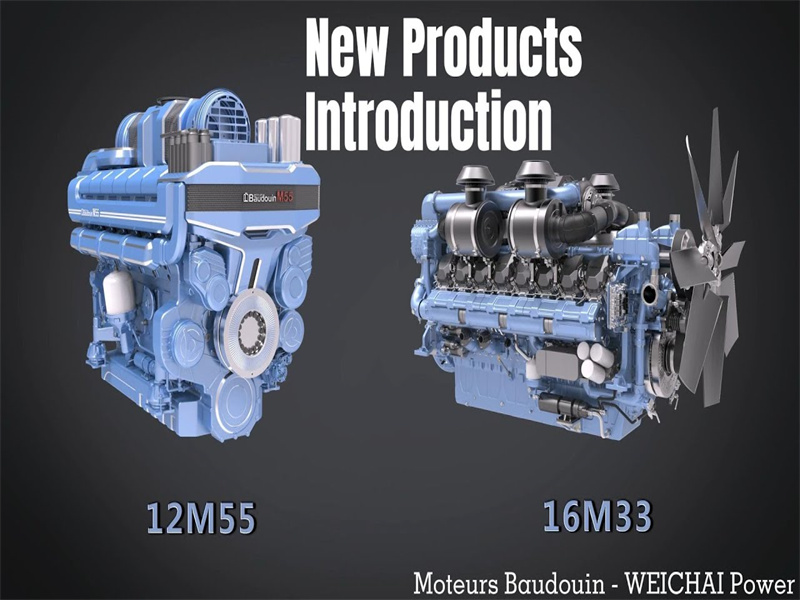

Weichai Baudouin Gas Engines: Technical Overview of Models 16M33G6N0/5 and 16M33G6N0/6
About Weichai Baudouin
Weichai Baudouin is a global leader in engine manufacturing, renowned for its high-performance solutions in industrial and power generation applications. In this article, we focus on the 16M33G6N0/5 and 16M33G6N0/6 gas engines, highlighting their technical features, design, and performance capabilities.
Weichai Baudouin is recognized for its robust, efficient, and durable engine solutions. These engines are tailored for continuous power (COP), prime-rated power (PRP), and combined heat and power (CHP) applications. With a focus on innovation and precision engineering, Weichai Baudouin delivers engines that meet stringent international standards.
Technical Specifications of 16M33G6N0/5 and 16M33G6N0/6
Key Dimensions and Design Features
| Model | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|
| 16M33G6N0/5 | 1500 | 2781 | 1564 | 5300 |
| 16M33G6N0/6 | 1800 | 2781 | 1564 | 5300 |
| Technical Parameters | Details |
|---|---|
| Bore x Stroke (mm) | 150 x 185 |
| Displacement (L) | 52.3 |
| Number of Cylinders | 16 |
| Cylinder Arrangement | Vee |
| Fuel System | Open Chamber / Lean Burn |
| Governor (Gov.) | ECU |
| Aspiration (Asp.) | Turbocharged & Air-to-Water Cooled (T/A-W) |
Standard Equipment
Engine and Block
Weichai Baudouin engines in these models include:
Cast Iron Cylinder Block: Designed for long-term reliability with inspection doors for easy maintenance.
Wet-Type Cylinder Liners: Replaceable and highly durable, reducing maintenance intervals.
Separate Cylinder Heads: Cast iron, 4-valve configuration for optimal combustion.
Forged Crankshaft: Hardened steel with induction-hardened journals for heavy-duty applications.
High-Performance Pistons: Lightweight alloy pistons with superior cooling efficiency.
Cooling System
The models feature dual-circuit cooling:
High-Temperature Circuit: Gear-driven coolant pumps controlled by thermostatic systems.
Low-Temperature Circuit: Belt-driven coolant pumps to handle auxiliary systems.
This system ensures effective temperature regulation under various load conditions.
Lubrication System
Key features of the lubrication system:
Full-Flow Screwable Oil Filters: Enhance filtration for cleaner lubrication.
Replaceable Cartridge Oil Purifier: Allows for easy maintenance while maintaining efficiency.
Water-Cooled Lube Oil Cooler: Ensures stable lubrication temperature during extended operations.
Fuel System
Designed for open chamber combustion, the fuel system provides:
Lean Burn Technology: Optimizes performance and fuel efficiency for COP, PRP, and CHP applications.
Air Intake and Exhaust System
The air and exhaust systems enhance performance and safety:
Turbocharged Aspiration (T/A-W): Features dual compressors feeding a water-air intercooler for optimal efficiency.
Rear-Mounted Air Filters: Equipped with restriction indicators for timely maintenance.
Exhaust Manifold Shielding: Prevents heat dissipation and ensures safe operation.
Electrical System
The electrical setup offers reliable monitoring and control:
24V DC Starter Motors: Ensures rapid and reliable startups.
Battery Charging Alternator: Keeps systems powered.
Safety Sensors: Monitors critical parameters such as oil pressure and water temperature.
Power Ratings Definitions
Continuous Power (COP)
Maximum power for constant load operation, without overload capability.
Prime Power (PRP)
Maximum power for variable load applications, allowing a 10% overload for up to 1 hour in a 12-hour cycle.
All ratings comply with ISO 8528-1 and ISO 3046 standards, with ±5% performance tolerance.
Advantages of Weichai Baudouin Gas Engines
High Efficiency: Lean burn and turbocharged designs maximize fuel usage.
Durability: Premium materials and robust construction ensure long service life.
Easy Maintenance: Modular components and accessible filters simplify servicing.
Adaptable Performance: Suitable for a range of applications, including COP, PRP, and CHP.
Conclusion
The Weichai Baudouin 16M33G6N0/5 and 16M33G6N0/6 gas engines exemplify engineering excellence, offering high performance, reliability, and efficiency. With their advanced features, such as dual-circuit cooling, lean burn fuel systems, and robust construction, they are ideal for industrial and power generation needs.
