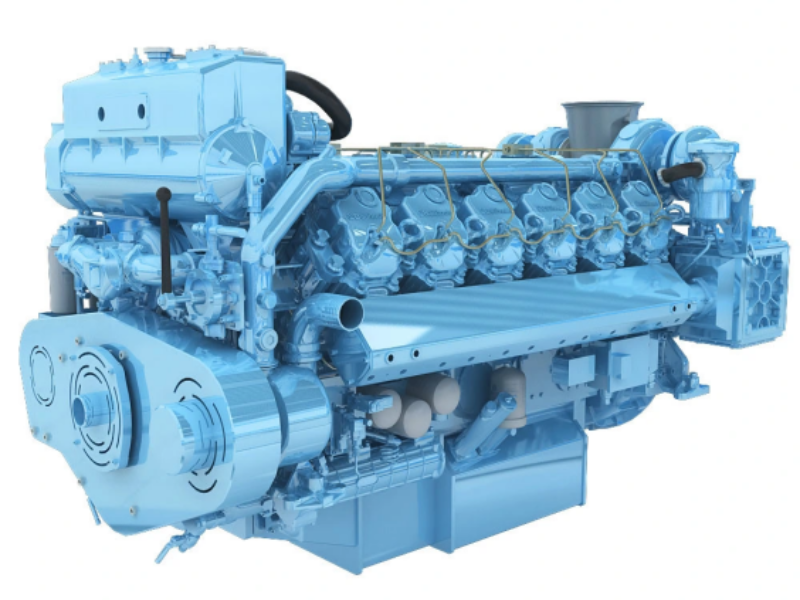

Weichai Baudouin V12-Cylinder Marine Engine 800HP 1800rpm with CCS

Weichai Baudouin V12-Cylinder Marine Engine 800HP 1800rpm with CCS

Basic Info.

Model NO.12M26C810-18

Engine 4 Stroke

Engine Position Inboard

Condition New

Weight 3570kg

Start The Way Electric Start

Bore-Stroke 150 X150 mm

Displacement 31.8 L

Minimum Fuel Consumption Rate 195g/Kw H

Oil Consumption Rate 0.8g/Kw H

Firing Order 1-12-5-8-3-10-6-7-2-11-4-9

Smoke Intensity Less Than1.0rb

Noise Less Than116dba

Rotation Direction of Crankshaft (Towar Clockwise

Type Four-Stroke, Water-Cooled, in-Line, Wet Cylinder L

Transport Package Plywood

Specification 2446X 1521 X1810 MM

Trademark WEICHAI

Origin Weifang, Shandong, China

HS Code 8408100000

Production Capacity 50 Sets/ Month

Product Description

Weichai M26 series marine diesel engine (296-808kW)
Weichai Baudouin V12-Cylinder Marine Engine 800HP 1800rpm with CCS

Product advantages

The M26 series products are originated from Moteurs Baudouin (the company has more than 100 years of history, and is a French major supplier of diesel engines and units. It was acquiredby Weichai in 2009 and is now a wholly-owned subsidiary of Weichai Group). The original products have been improved comprehensively through localization development with respect to their performance, featuring low fuel consumption, long overhaul period and high reliability.The product power is within the range of 330-808kW and is widely used in various types of ships, such as cargo ships, offshore fishing boats, public service ships and passenger ships.

Product parameters

Type	Four-stroke, water-cooled, in-line, wet cylinder liner	Number of cylinders	6/8/12
Bore/stroke	150×150mm	Displacement	15.9/21.2/31.8L
Minimum fuel consumption rate	190g/kW·h	Oil consumption rate	0.8g/kW·h
Starting mode	Electric starting	Idle speed	650±30r/min
Firing order	A1-B2-A5-B4-A3-B1-A6-B5-A2-B3-A4-B6	Smoke intensity	≤1.0Rb
Noise	≤105dB(A)	Rotation direction of crankshaft (Toward the free end)	Clockwise

Product portfolio

Model	Air intake mode	Rated power (kW/Ps)	Rotational speed (rpm)	Oil supply mode	Emission level
6M26C450-18	Turbocharged and intercooled	330/450	1800	Mechanical pump	IMO II/China Tier I
6M26C500-18	Turbocharged and intercooled	368/500	1800	Mechanical pump	IMO II/China Tier I
6M26C550-18	Turbocharged and intercooled	405/550	1800	Mechanical pump	IMO II/China Tier I
8M26C650-18	Turbocharged and intercooled	478/650	1800	Mechanical pump	IMO II/China Tier I
8M26C700-18	Turbocharged and intercooled	515/700	1800	Mechanical pump	IMO II/China Tier I
8M26C750-18	Turbocharged and intercooled	551/750	1800	Mechanical pump	IMO II/China Tier I
12M26C810-18	Turbocharged and intercooled	596/810	1800	Mechanical pump	IMO II/China Tier I
12M26C900-18	Turbocharged and intercooled	662/900	1800	Mechanical pump	IMO II/China Tier I
12M26C1000-18	Turbocharged and intercooled	736/1000	1800	Mechanical pump	IMO II/China Tier I
12M26C1100-18	Turbocharged and intercooled	808/1100	1800	Mechanical pump	IMO II/China Tier I

Product Features

· Safe and reliable: It uses cast iron body, grid structure and high-strength one-piece forged steel crankshaft; the seawater pipe is all of cast copper and stainless steel, and the pure copper sea water pump has stronger corrosion resistance; the cooling lubrication system is equipped with an emergency interface.

· Strong power: The power range is wide; the torque reserve is over 20%, and the diesel engine is divided into high and low speed versions, of which the low speed version diesel engine has higher torque value at medium and low speeds, and the high speed version diesel engine has higher torque value at medium and high speeds, which are better adaptive to different ships.

· Fuel economy: The diesel engines are divided into high and low speed versions, of which the low-speed version diesel engine has lower fuel consumption rate at medium and low speeds, and the high-speed version diesel engine has lower fuel consumption rate at medium and high speeds. The fuel consumption rate of the 6-cylinder diesel engines at rated conditions is less than 200g/kW•h, and the rated fuel consumption rate of the 12-cylinder diesel engine less than 210g/kW•h; the highest oil consumption rate is 0.8g/kW•h.

· Strong practicality: It is equipped with a manual oil pump that can be pre-lubricated and drain the used engine oil. The oil cooler and filter are modular in design; the whole engine is compact in structure; a sight glass is set on the side of the engine block to facilitate maintenance.

Weichai Baudouin V12-Cylinder Marine Engine 800HP 1800rpm with CCS

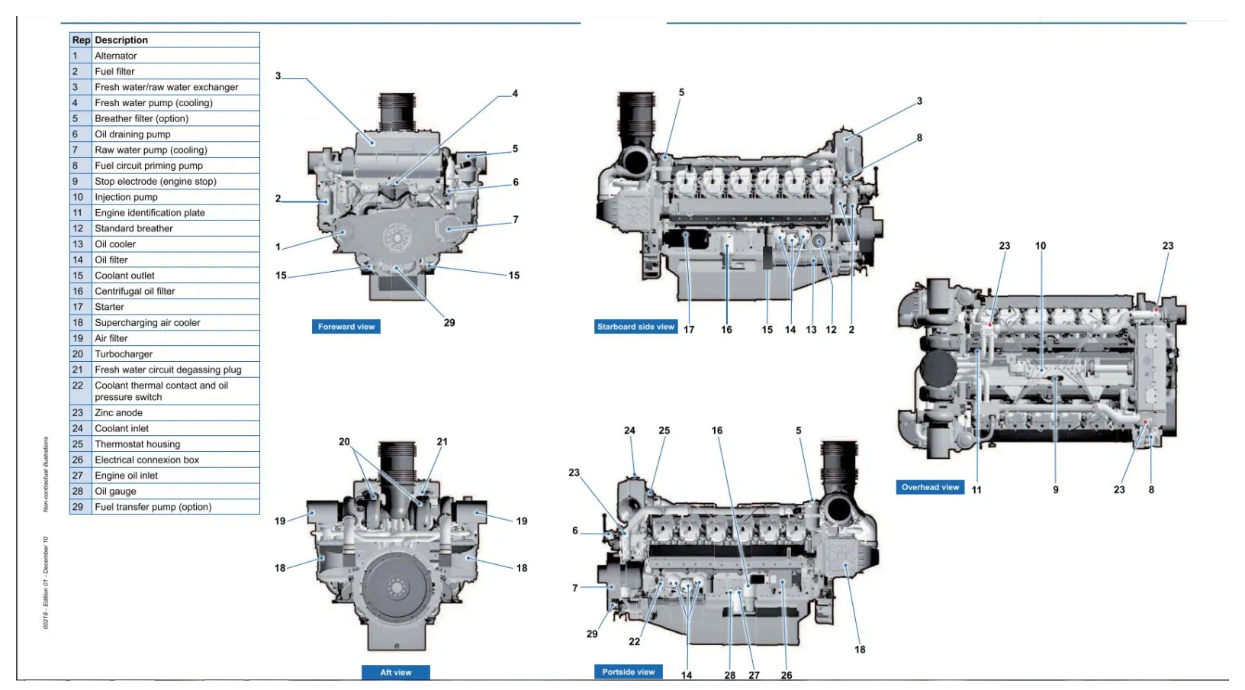

Standard Equipments
Engine and block
Cast iron cylinder block One inspection door per cylinder for access to conrod cap Cast iron cylinder liners, wet type Separate cast iron cylinder heads equipped with 4 valves Replaceable valves guides and seats 8 cylinders head tightening bolts Hardened steel forged crankshaft with induction hardened journals, crankpins and radius Camshaft with polynomial cams profile Distribution with tempered, hardened and grinded helicoïdal gears Chromium-Molibdenum steel conrods Lube oil cooled light alloy pistons with high performance piston rings
Cooling system
Fresh / raw water heat exchanger with integrated thermostatic valves and expansion tank Cast iron centrifugal fresh water pump, mechanically driven Bronze self-priming raw water pump, mechanically driven

Lubrification system
Full flow screwable oil filters Lube oil purifier with replaceable cartridge Fresh water cooled lube oil cooler
Fuel system
In line injection pump with flanged mechanical governor Double wall injection bundle with leakage collector Duplex fuel filters replaceable engine running
Intake air and exhaust system
Fresh water cooled turbo blower Double flow raw water cooled intake air cooler
Electrical system
Voltage: 24Vcc Electrical starter on flywheel crown 175A battery charger

Power definition
(Standard ISO 3046/1 - 1995 (F)

Reference conditions
Ambiant temperature 25 °C / 77 °F
Barometric pressure 100 kPa
Relative humidity 30 %
Raw water temperature 25 °C / 77 °F

Fuel oil
Relative density 0,840 ± 0,005
Lower calorific power 42 700 kJ/kg
Consumption tolerances 0 ± 5 %
Inlet limit temperature 35 °C / 95 °F

Weichai Baudouin V12-Cylinder Marine Engine 800HP 1800rpm with CCS

Warm prompt

Production cycle: 21 working days.
Mode of transport: By seaTerms of payment: 30% down payment, balance settled before delivery.
Packing method: Non-fumigated wood export packing.
Delivery time: 5 working days after receipt of full payment.
Warranty period: One year warranty. If the problem is not caused by human, it can be repaired at the nearest overseas service station. After the warranty period, by virtue of the purchase contract, enjoy more preferential parts service.
