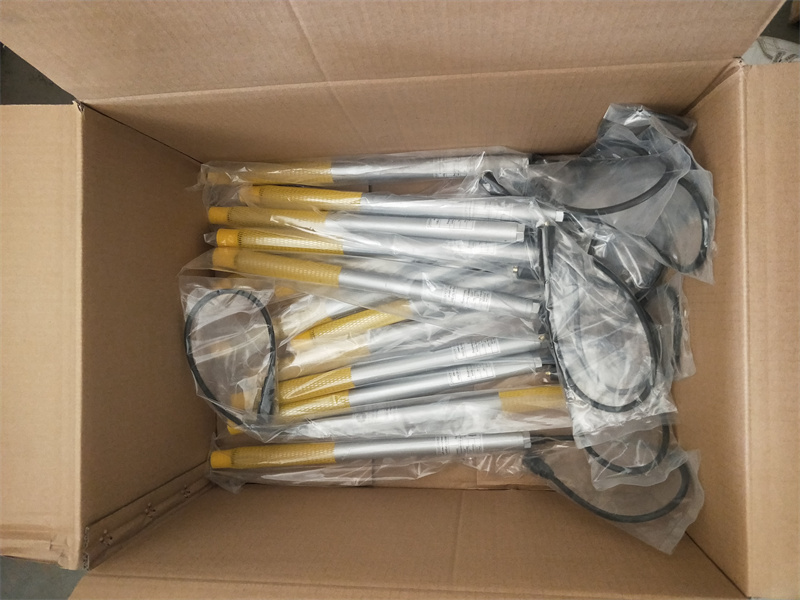

H16V190ZLT CNPC 1000KW gas generator spare parts spark plug 601T.90.20 for sale

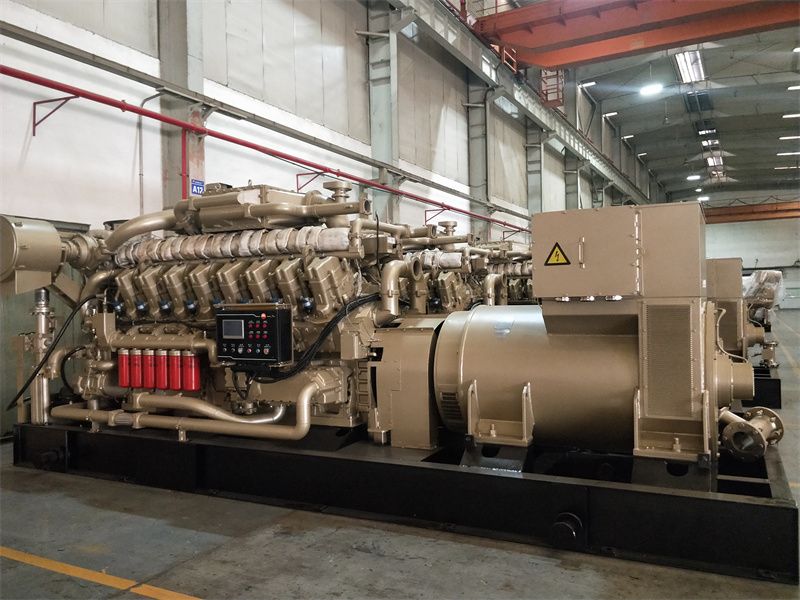

1200KW Natural Gas Generating Set Technical Specification and Quotation

1. Main Technical Specification of Natural Gas Gensets

Model of generating sets: 1200G9-T2
Model of engine: H16V190ZLT-2
Model of alternator: 1FC6506-4LA42
Rated capacity: 1500KVA
Rated power: 1200KW
Continuous power: 1000KW
Rated speed: 1000 r/min
CH4 Requirement: ≥70%
H2S Requirement: ≤15ppm
Gas pressure: ≥7kpa
H2O: No liquid state water vapor in natural gas
Rated voltage: 10KV
Rated frequency: 50Hz
Rated power factor: 0.8
Supply method: 3 phases 4 lines
Excitation method: Brushless
Starting method: 24V DC starter 24V or Air motor
Cooling method: FAN radiator
Speed modulate method: Electronic control
Net weight: 21000kg
Overall dimension (L×B×H): 7150×2180×2421(mm)

2. Main Electrical Performance Data

Voltage

  • Stable regulating rate: ±2.5%

  • Instantaneous regulating rate: ≤±20%

  • Recovery time: ≤2s

  • Fluctuation: ≤1%

Frequency

  • Stable regulating rate: 0~5%

  • Instantaneous regulating rate: ≤±10%

  • Recovery time: 7s

  • Fluctuation: ≤1%

3. Main Technical Data of Engine

Model of engine: H16V190ZLT-2
Rated power/speed: 1320KW/1000rpm
Overall dimension (L×B×H): 3830×2060×2315(mm)
Net weight: 13000kg
Specific oil consumption: ≤1.0g/KW.h
Number and layout of cylinders: 16 cylinders, 60° V-type
Type: Four stroke, water cooled, turbocharged and aftercooled, spark plug ignition
Bore: 190mm
Stroke: 215mm
Total displacement: 97.53L
Compression ratio: 10:1
Direction of rotation (facing flywheel end): Counter-clockwise
Lubricating method: Pressure and splash lubrication

Buy CNPC H16V190ZLT engine parts for power station, send inquiry to [email protected] or call +8618766952912 to Order Today.
