H16V190zlt2-2 1000kw Natural Gas Generator Jichai Chidong Brand

H16V190zlt2-2 1000KW natural gas biogas generator

Basic Info.

Model NO.

H16V190ZLT2-2

Specification

11300

Trademark

jichai

Origin

China

HS Code

8409999000

Production Capacity

50000pecises/Year

Product Description

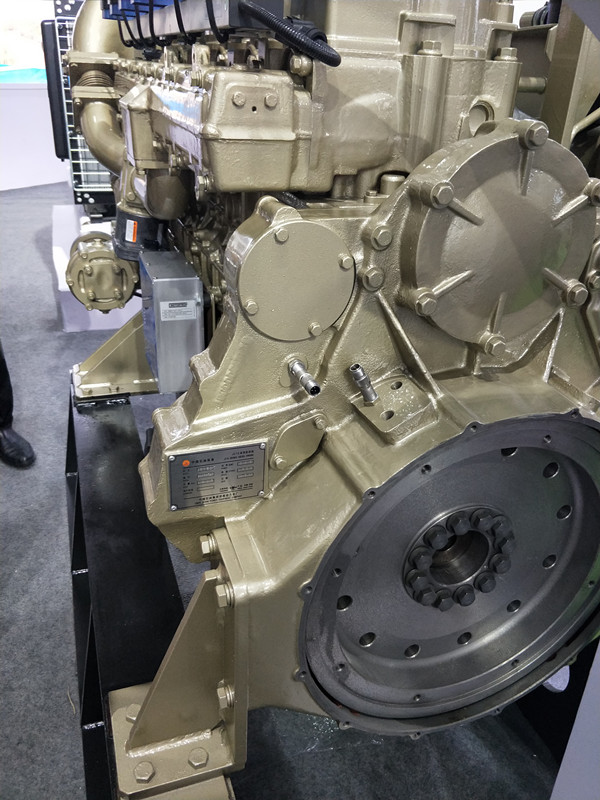

ENGINE SPECIFICATIO NS
V-16, 4-Stroke-Cycle-Engine (190 series)
Bore------------------------------------------- 190mm
Stroke----------------------------------------- 215mm
Displacement-------------------------------- 97.53L
Aspiration Turbocharged-After cooled
Speed Control Electronic Speed governing
Rated Speed 1200rpm
Rated power--------------------------------- 1150kW

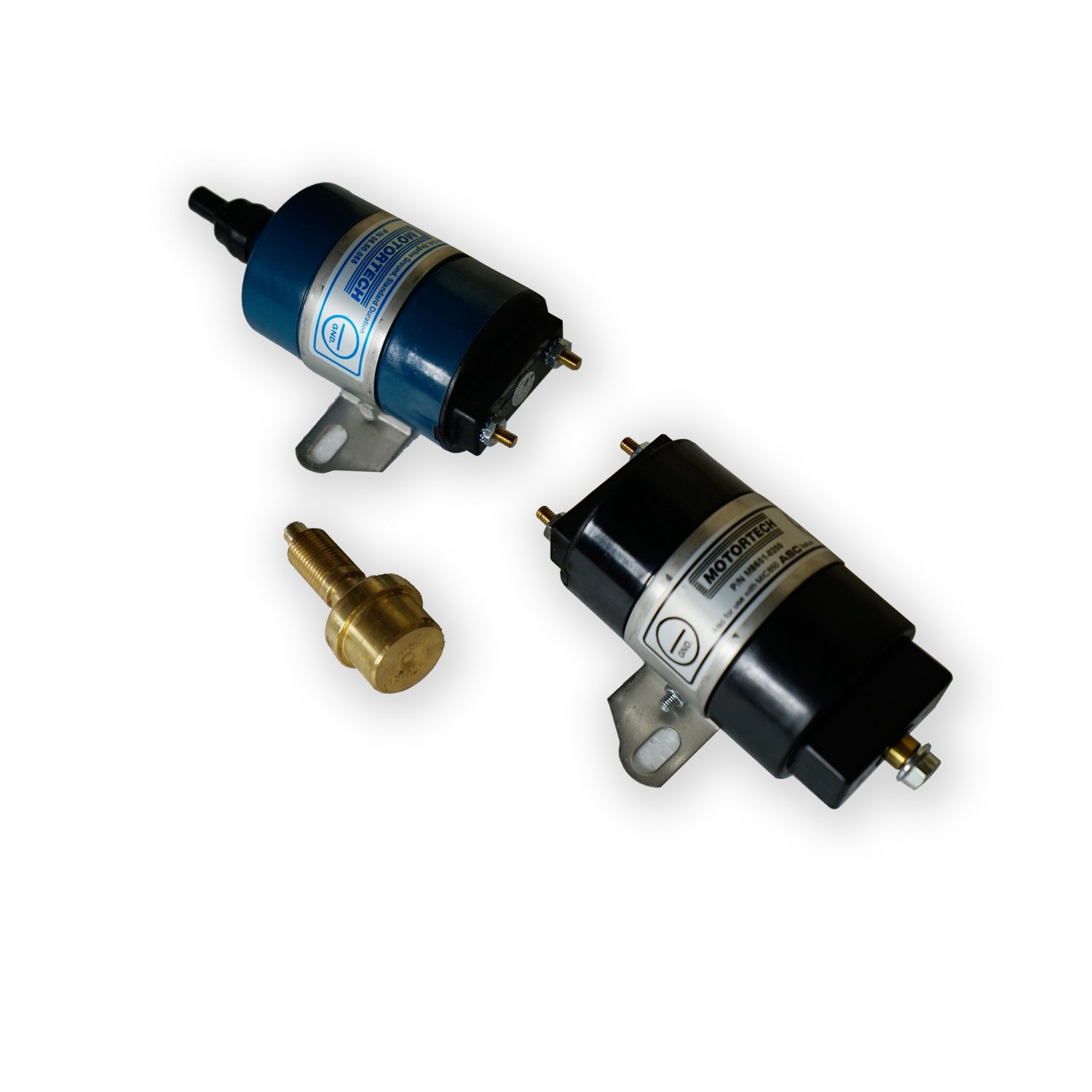

H16V190Z LT-2 outer mixing gas engine is developed by our company to meet the requirement of market. The whole engine is optimized by amending the shortages of the first gas engine generation. The power performance, fuel economy and reliability of this gas engine are improved a lot by adopting outer mixing mode, increasing compression ratio and boost ratio, enhancing swirl rat io, realizing lean -burnt by controlling air fuel ratio, using high-energy ignition, and etc.
This engine series is mainly used in generating by single en gine or several engines forming a power station. It also can be used as power of comp ressor, oil t ransfer pump, water in jection pump, and etc.
MAIN FEATURES

Engine Design Testing

Designed by AVL, Austria - Strict Inspection and Factory Test for Each Gen -set
Intellectual Property belong to JCPC - Start Performance Test
Triaxiality Finite Element Analysis - Load Test
Longer Stro ke, More d isplacement - Synchronization Test
Low Speed (1200RPM), More Reliab le - Safety System Test
Advanced World Standard Performance The Whole Equipment Supply Generator - Standard Scope of Supply

- Brushless Excitation - Repairing Tools

-AVR Easy Installation and Remove

Better Insulation and Protection - A ll Equip ment on Co mmon Skid Three -Point

Safety Support

Low Oil Pressure Auto Stop Protection -Simple Installation Work
Over Speed Auto Stop Protection - High Strength Skid, for Hoisting and Removing.
Exp losion Proof Technical Support & Services
High Coolant Temperature Alarm - Technical Support and Training Service
Low Coo lant Level Alarm - 24/7 Technical Serv ice Tel Nu mber
High Oil Temperature Alarm - Rapid Spare Parts Supply
Co mplete Electrical Protection - After Sales Service for Generator Set Lifetime
Emergency Stop Device

Property Parameter Table

Model	1000GF-T
Engine type	H16V190ZLT-2

Alternator type	1FC series (siemens technology)
Rated Power * kW	1000
Rated Speed rp m	1200
Rated Frequency Hz	60
Rated PF	0.8
Vo ltage Regulat ion AVR
Weight kg	19500
Dimension mm	6500×2312×2777

*Rating and fuel consumption based on ISO Standard conditions (Ambient temperature at 25 degree Centigrade, At mospheric pressure at 100kPa and Relative hu mid ity at 30%). Site rat ing and fuel consumption should amend according to relative standard (The table at right side for reference )

Model of alternator	1FC series (siemens technology)
Rated power(kW)	1000
Rated voltage(V)	400
Coupling	Elastic
Voltage regulator	3 phase sensing with volts/Hz.

Voltage regulat ion	Less than +/-0.5% in steady state and less than +/- 0.5% with 3% speed change.
Rated frequency	60Hz
Power factor	COS¢=0.8
Wiring mode	Three-phase four-wire system(Y)
Excitation mode	Brushless excitation
Insulation class	F
Running mode	Continuous
Protective class	IP23
Rotating direction	Anticlockwise(Facing to input end)

Natural Gas Engine S tarting S ystem
Air inlet system DC Starting M otor
Air Filter Electric Starter 24 Volt
Air Cooler Lubricating S ystem
Bracket M ain Oil Pump
Control system Lube Oil Filter
Governor Lube Oil Cooler
Control Panel Lube Oil Centrifugal Filter
Explosion Proof Alternator
Safety Protection System Brushless Excitation Alternator
Exhaust system AVR(Digital M ode)
Exhaust Gas Turbocharger S pares
Exhaust M anifold Normal Repair Tools
Corrugated Pipe Special Spare Parts
Exhaust Pipe Technical Document
Exhaust Elbow Others
Exhaust Silencer Common Skid
Cooling system Elastic Coupling

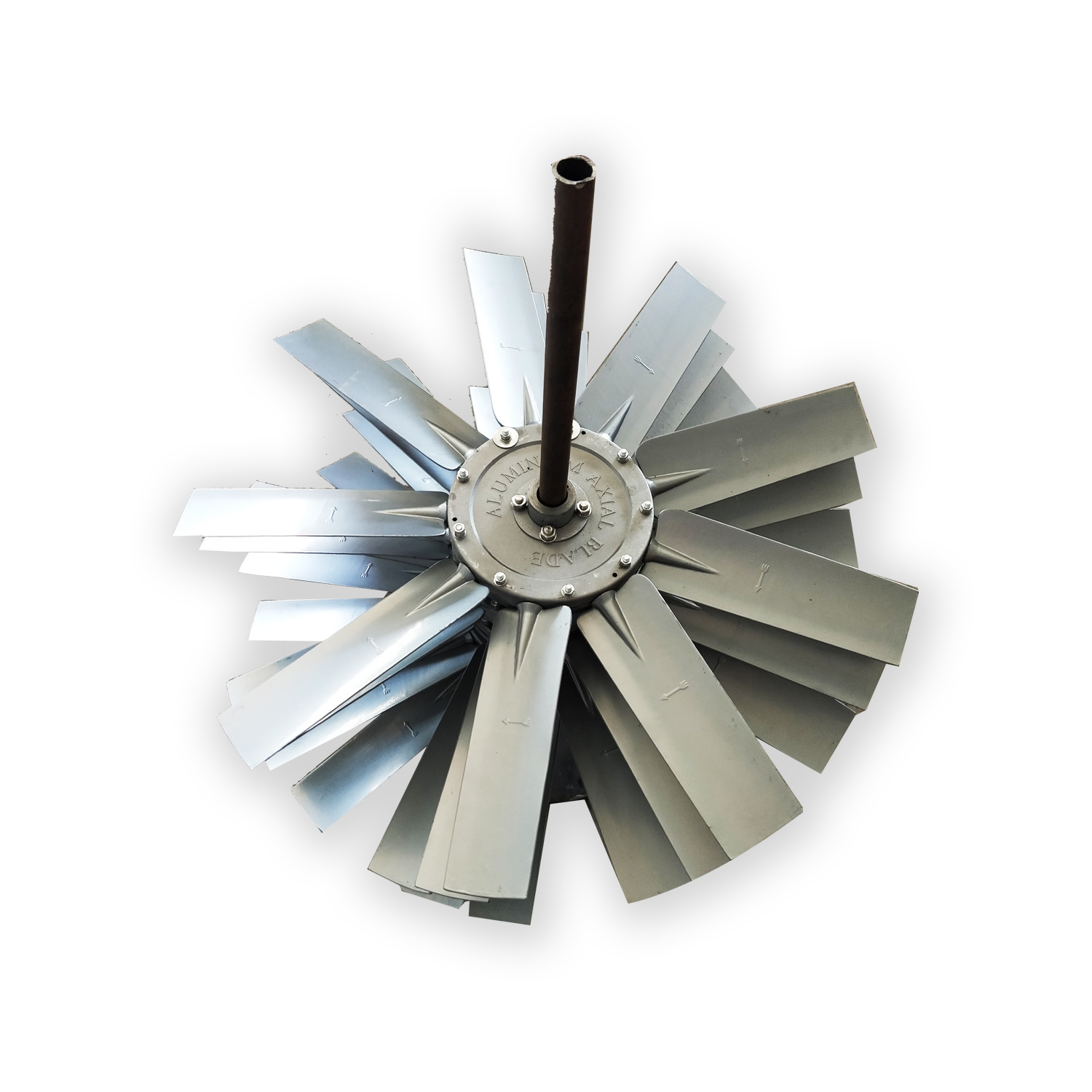

Horizontal Radiator
