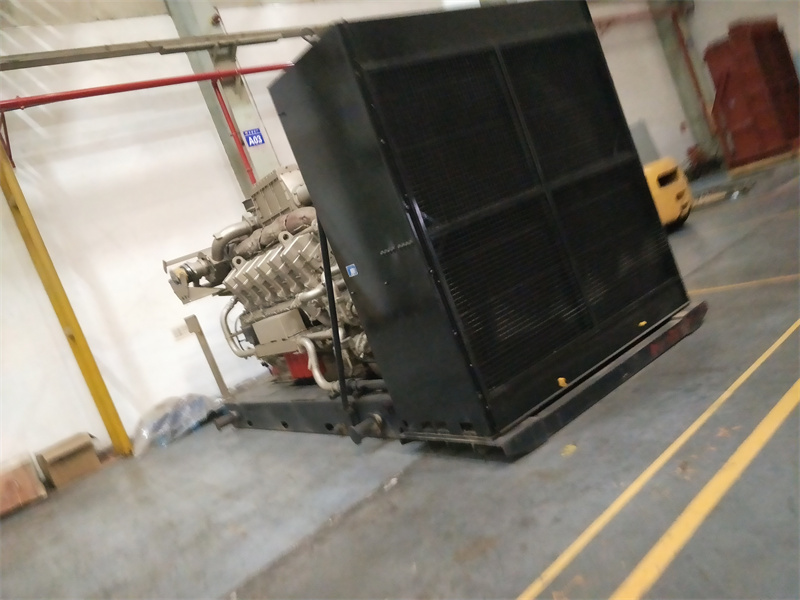

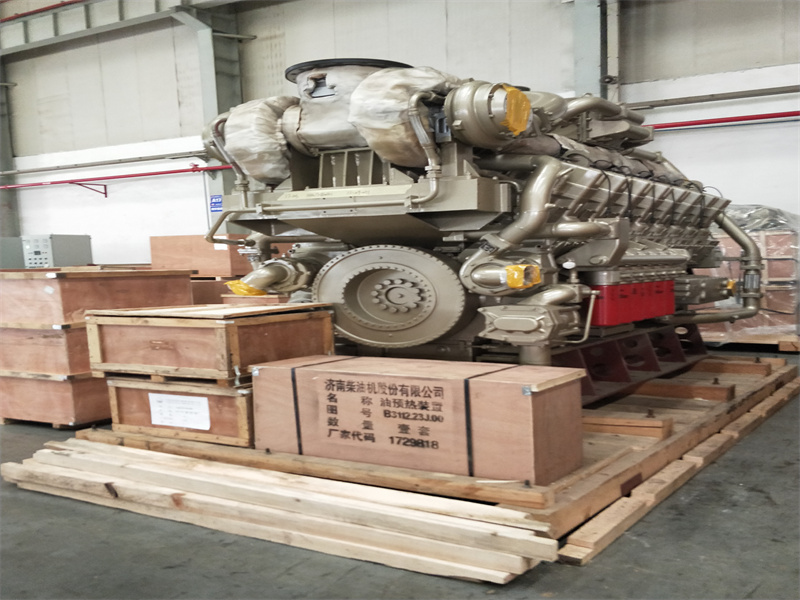

1200KW natural gas generator jichai jinan brand H16V190ZDT
1000KW天然气发电机组技术参数和报价
1000KW Natural gas generating set technical specification and quotation
1. 天然气发电机组技术参数：
Main technical specification of Natural gas gensets
Model of generating sets 机组型号 | 1000GF-TK |
Model of engine 发动机型号 | H16V190ZLT-2 |
Model of alternator发电机型号 | 1FC6506-4LA42 |
Rated capacity 额定容量 | 1250KVA |
Rated power 额定功率 | 1000KW |
Continuous power 持续功率 | 850KW |
Rated speed 额定转速 | 1000 r/min. |
CH4 Requirement 甲烷浓度要求 | ≥70% |
H2S Requirement 硫化氢要求 | ≤15ppm |
Gas pressure 燃气压力要求 | ≥7kpa |
H2O | no liquid state water vapour in natural gas 天然气中不允许存在液态水 |
Rated voltage 额定电压 | 400V |
Rated frequency 额定频率 | 50Hz |
Rated power factor功率因数 | 0.8 |
Supply method 供电方式 | 3 phases 4 lines三相四线制 |
Excitation method 励磁方式 | Brushless无刷 |
Starting method 启动方式 | 24V DC starter 24V or Air motor |
Cooling method 冷却方式 | 闭式Close |
Speed modulate method调速方式 | Electronic control电子调速 |
Net weight 净质量kg | 21000kg |
Overall dimension 外形尺寸 L×B×H(mm) | 5920×2180×2200(mm) |
2. 机组的主要电气指标：
Main electrical performance data
电压 Voltage | 稳定调整率 Stable regulating rate | ±2.5% |
瞬态调整率 Instantaneous regulating rate | ≤±20% | |
稳定时间 Recovery time | ≤2s | |
波动率 Fluctuation | ≤1% | |
频率 Frequency | 稳定调整率 Stable regulating rate | 0～5% |
瞬态调整率 Instantaneous regulating rate | ≤±10% | |
稳定时间 Recovery time | 7s | |
波动率 Fluctuation | ≤1% |
