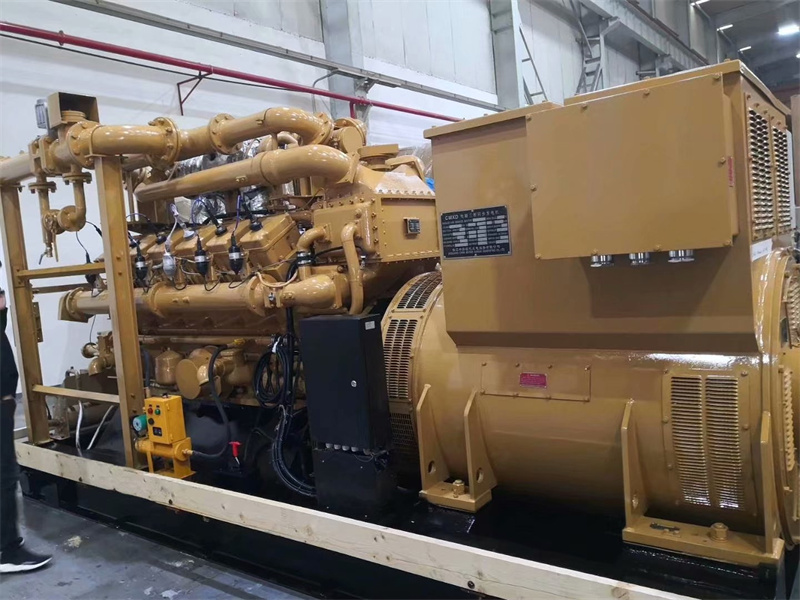

12V190ZDT-2 12V190DT-2 engine 500GF18-TK 500KW jinan natural gas generator
DESCRIPTION
Engine model: 12V190ZDT-2, 12V190DT-2, 6190ZLT-2
Rated power(kW): 500, 400, 200
Rated frequency(Hz): 50
Starting mode: 24V DC starting
Weight(kg): 11800, 11300, 8690
TECHNICAL PARAMETERS OF NATURAL GAS ENGINE
| Model | 12V190ZDT-2 | 12V190DT-2 | 6190ZLT-2 |
| Code | 127 | 408 | 206LCT |
| Type | turbocharged, inlet air cooling | natural aspiration | turbocharged, inter cooling |
| 4-stroke, spark ignition and water-cooled | |||
| Arrangement of cylinders | V shape, 60° angle | In-line | |
| Number of cylinders | 12 | 6 | |
| Diameter of cylinders | 190 mm | ||
| Stroke | 210 mm | ||
| Compression ratio | 8：1 | 9：1 | 8：1 |
| Rated rev | 1000 r/min | ||
| Idle speed | 700 r/min | ||
| Rated power | 552 kW | 450 kW | 270 kW |
| Heat consumption | ≤11386 kJ/kW·h | ||
| Oil consumption | ≤1.63 g/kW·h | ||
| Temperature before entering turbine | ≤650℃ | ||
| Steady state speed governing rate | 0-5% adjustable | ||
| Cooling mode | Pressurized water cooling | ||
| Lubrication mode | Pressure and spray lubrication | ||
| Starting mode | Electric motor starting | ||
TECHNICAL SPECS AND PERFORMANCES OF NATURAL GAS GENERATOR SET
| Generating set model | 500GF18-TK(TK1) | 400GF-TK1 | 200GF-TK |
| Engine model | 12V190ZDT-2 | 12V190DT-2 | 6190ZLT-2 |
| Generator model | 1FC5456-6TA42 | 1FC5454-6LA42 | 1FC5404-6TA42 |
| Control panel type | PL-500 | PLT-400 | PLT-200 |
| Rated power(kW) | 500 | 400 | 200 |
| Rated voltage(V) | 400/230 | ||
| Rated frequency(Hz) | 50 | ||
| Rated power factor ( cosΦ) | 0.8 | ||
| Starting mode | 24V DC starting | ||
| Overall dimensions L×B×H(mm) | 4560×1790×2780 | 5120×2040×2320 | 4935×1760×2023 |
| Weight(kg) | 11800 | 11300 | 8690 |
