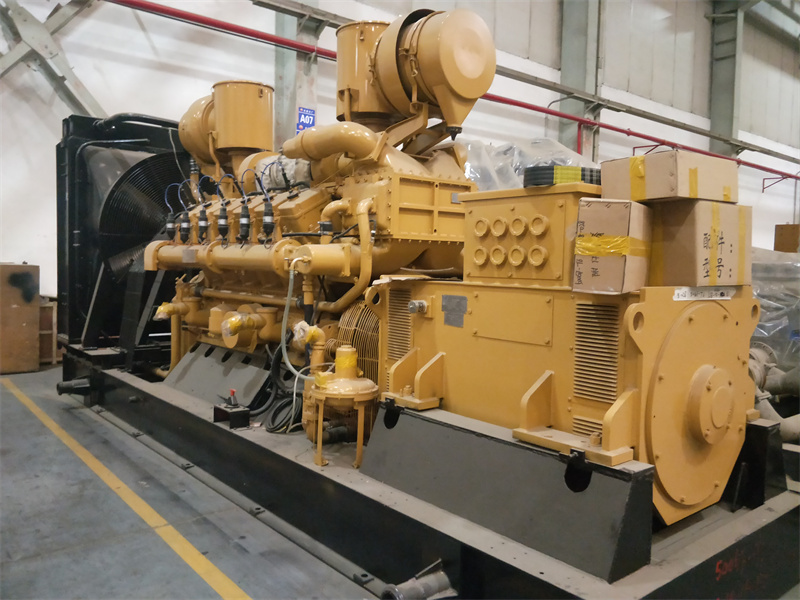

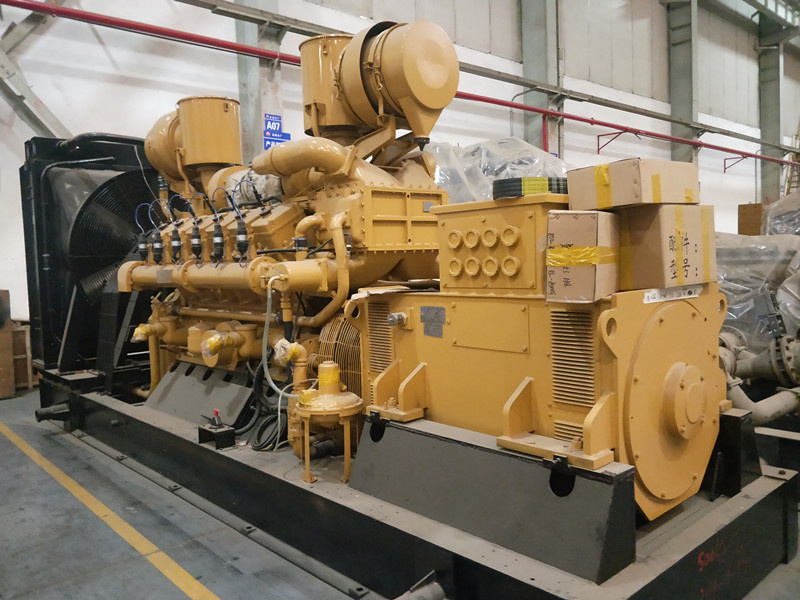

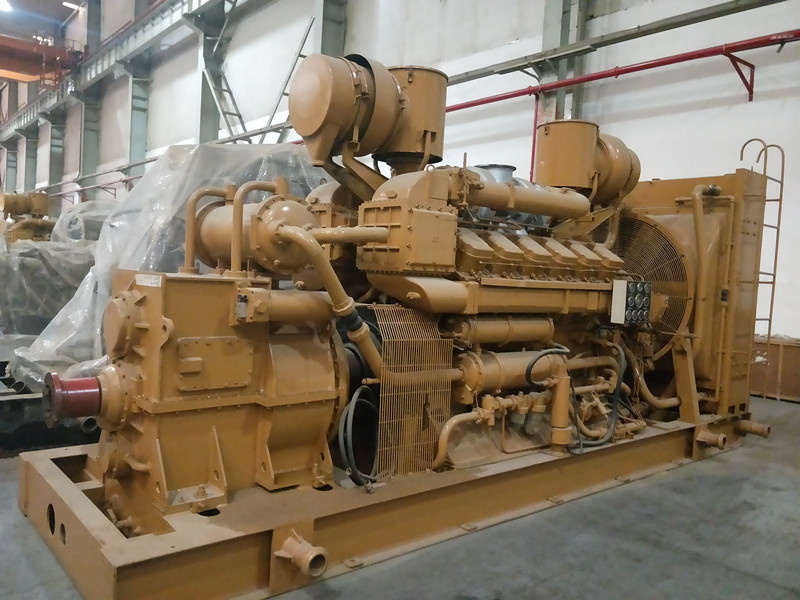

127 series 400GF18-TK1 400kW 12V190ZDT-2 natural gas generator
1. Natural gas generator set technical parameters
Name | Unit | Specification |
Unit Type | 400GF18-TK1 | |
Engine model | 12V190ZDT-2（127) | |
Generator model | 1FC6 Series | |
Continuous power: | kW | 400 |
Rated voltage: | V | 400/230 |
Rated frequency: | Hz | 50 |
Rated power factor: | 0.8（After） | |
Rated speed: | r/min | 1000 |
Cooling method: | Exchaging heater | |
Starting method: | 24V DC electric starting | |
Dimensions L × B × H | mm | 5120×2040×2780 （Subject to standard drawings） |
Quality | kg | 12500 |
2. Engine technical parameters
Name | Unit | Technical specifications |
Model | 12V190ZDT-2（127) | |
Type | Magneto, spark plug ignition, supercharged inter cooling, external mixing | |
Cylinder arrangement | V-shaped, 60 ° angle | |
Number of cylinders | 12 | |
Cylinder diameter | mm | 190 |
Piston stroke | mm | 210 |
Total displacement of piston | L | 71.5 |
Calibration speed | r/min | 1000 |
Idle speed | r/min | 700 |
Nominal power | kW | 550 |
Heat rate | kJ/kW·h | ≤11000 |
Oil consumption rate | g/kW·h | ≤1.6 |
Turbine front row temperature | ℃ | ≤650 |
Speed mode | Electronic speed regulation | |
Stable speed regulation | % | ≤5% |
Cooling method | Forced water cooling | |
Lubrication method | Pressure lubrication and splash lubrication | |
Starting method | Electric motor start |
