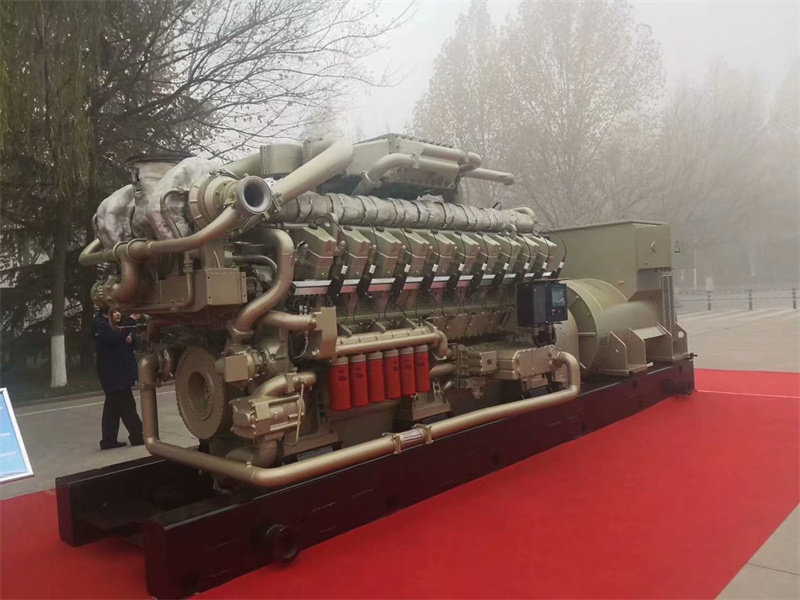

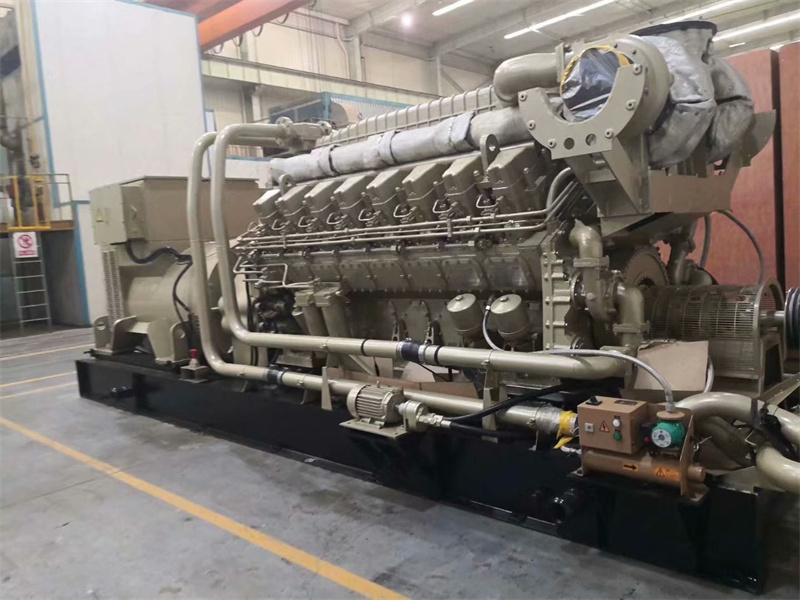

1200kw natural gas generator CNPC Jichai/Jinan Brand H16V190zlt-2

Basic Info.

Model NO.

H16V190

Specification

1000

Trademark

jichai

Origin

China

HS Code

8409999000

Production Capacity

50000pecises/Year

Product Description

Set model	Diesel engine model	Generator model	Rated power(KW)	Rated voltage (V)	Rated frequency (HZ)	Overall dimensions LBH (mm)	Net weight (Kg)
1350GF	H12V190ZL	DIGI1308/4	1350	400/230	50	7880×2869×3175	19100
1350GF-K	H12V190ZLD	1FC6566-4TA42	1350	400/230	50	5930×2180×2421	17000
1350GFZ	H12V190PZLD	1FC6566-4TA42	1350	400/230	50	7880×2869×3175	19500
1500GF	H12V190ZL	1FC6566-4TA42	1500	400/230	50	7880×2869×3175	19500
1500GF-K	H12V190ZL	HCI734H2	1500	400/230	50	5930×2180×2421	17000
1500GFZ	H12V190ZLD	1FC6566-4TA42-Z	1500	400/230	50	7880×2869×3175	19500
2000GF	H16V190ZLD	1FC5636-4BA42	2000	400/230	50	9060×2869×3175	24000
2000GF-K	H16V190ZLD	1FC5636-4BA42	2000	400/230	50	7150×2180×2421	21000
2000GFZ	H16V190ZLD	1FC5636-4BA42	2000	400/230	50	9060×2869×3175	24000

Main Electrical Performance Data:

Voltage	Frequency
Steady-state adjusting rate	Transient-state adjusting rate	Stable time	Fluctuation rate	Steady-state adjusting rate	Transient-state adjusting rate	Stable time	Fluctuation rate
±2.5%	15%~+20%	1.5S	0.5%	5%	±10%	7S	0.5%
Voltage regulation range: no-load voltage regulation:	95~105% of rated voltage

Control Panel
The control panel of the diesel generating set is mainly used to control the power transmission of generator sets, providing protections for lack-voltage, over-current, automatic speed regulation and reverse power. Meanwhile, it also can monitor such parameters as revs, water temperature, oil temperature, oil pressure and exhaust temperature, with a sound-light alarming output system
