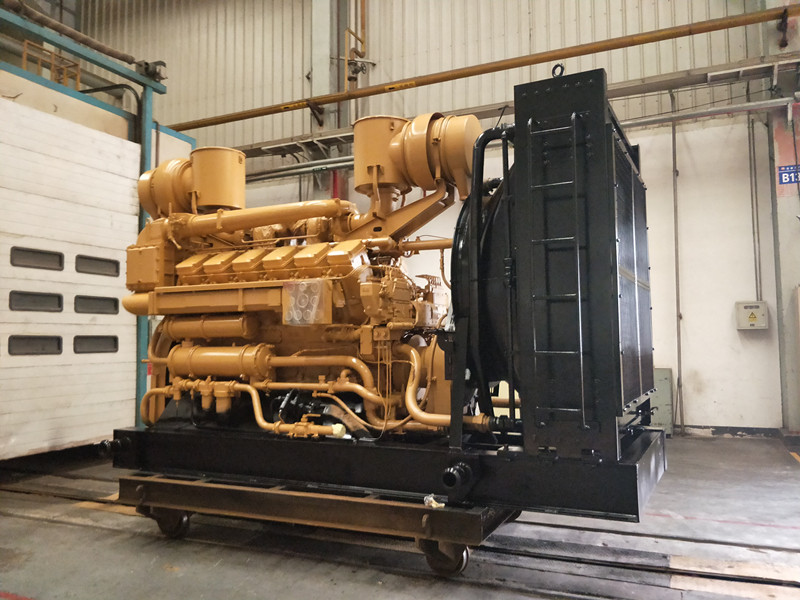

jinan diesel engine chidong G12V190PZL drilling engine
- chidong engine
- G12V190PZL
- Jinandieselengine
№ | 名称 Name | 标定功率 (KW) | 标定转速(r/min) | 外型尺寸 (mm) | 总重量(kg) |
1 | G12V190PZL | 1000 | 1500 | 3860*2040*2678 | 8100 |
结构 Type: | 四冲程， 直喷燃烧室，水冷，增压中冷 four stroke,water cooled,turbocharged and after cooled,direct injection. |
缸数及排列 No. And layout of cylinders: | 12,V- 60° |
气缸直径 (mm) Bore | 190 |
活塞行程 (mm) Stroke | 210 |
活塞总排量 (L) Total displacement: | 71.45 |
压缩比 compression ration: | 14:1 |
排气温度（℃）exhaust gas temperature | ≤600 |
排水温度（℃）Drainage temperature ( | ≤90 |
油底壳机油温度（℃）Sump oil temperature | ≤95 |
稳定调速率（%）Stable rate | ≤8 |
冷却方式 cooling method | 水冷 water cooling |
润滑方式 lubricating method | 压力 pressure and splash lubrication |
启动方式 starting method | 气启动 air motor |
2、供货范围：Supply scope:
1) 柴油发动机 diesel engine
2) 散热器 radiator
3) 随机备件 special parts
4) 随机工具 special tools
5) 排气管及消音器 5) exhaust pipe and muffler (non-standard, customers can choose to order)
6) 中英文使用说明书 Chinese and English manual
7) 中英文装箱清单，产品出厂试验证明书，质量证明书等随机资料 Chinese and English packing list, product test certificate, quality certificate and other random information
8) 标准出口木箱包装。8) standard export wooden box packaging.
3、支付方式：Payment terms
合同签订后收到,卖方形式发票后10日内支付合同总金额的40%，在接到卖方发货通知后5日内付清合同余款。
After receipt of the contract, the Seller shall pay 40% of the total amount of the contract within 10 days upon receipt of the seller's invoice, and pay off the balance of the contract within 5 days after receiving the notification of the seller's delivery.
