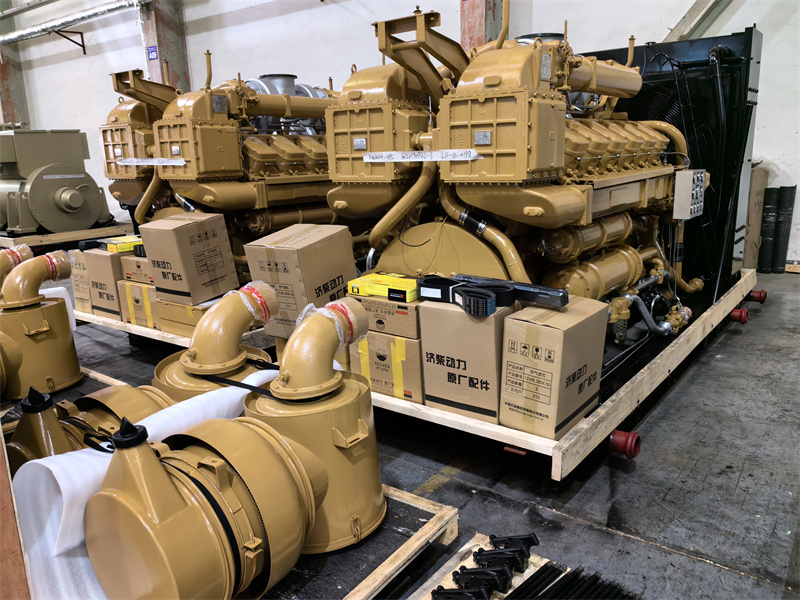

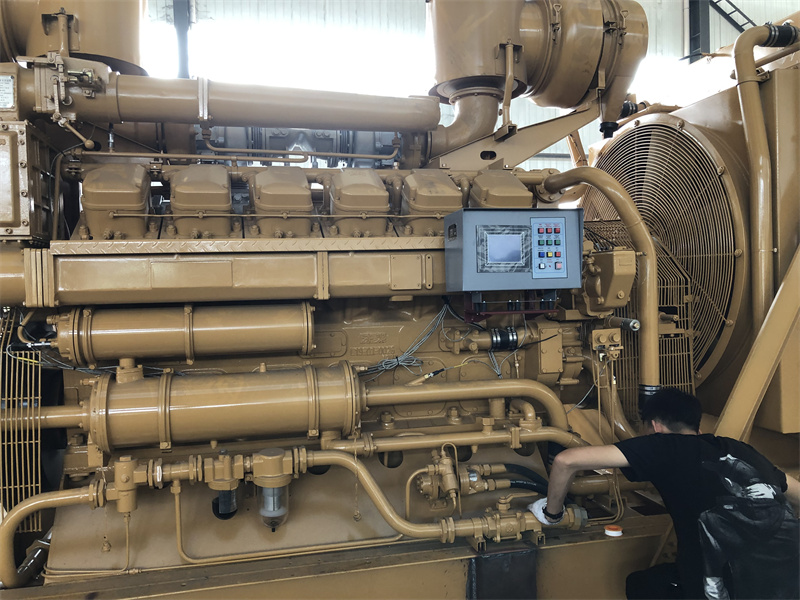

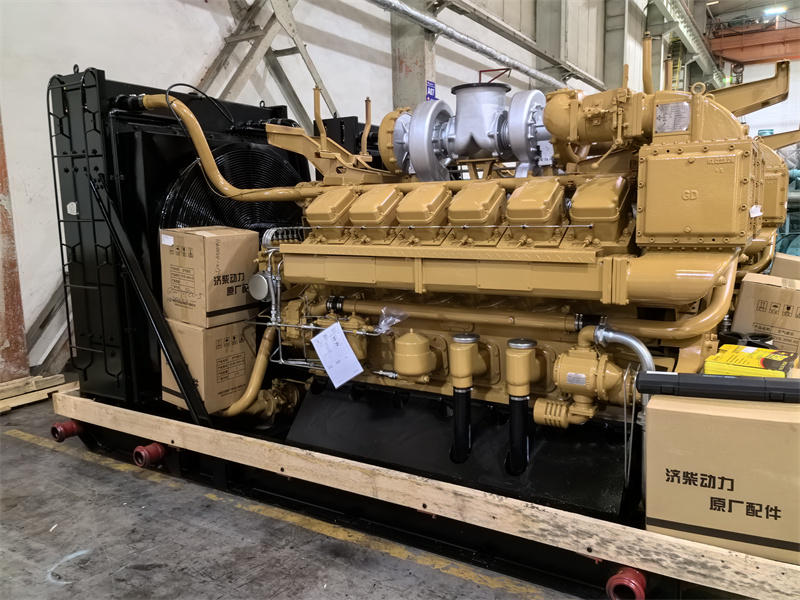

delivery of jichai jinan diesel engine G12V190PZL-3 coupled with 800hp mud pump
G12V190PZL-3 Diesel Engine Specifications
| Category | Details |
|---|---|
| Type | Four-stroke, water-cooled, turbocharged and aftercooled, direct injection |
| Number of Cylinders | 12, V-60° |
| Bore × Stroke (mm) | 190 × 210 |
| Total Displacement (L) | 71.45 |
| Compression Ratio | 14:1 |
| Rated Power (kW) | 1000 |
| Rated Speed (r/min) | 1500 |
| Exhaust Gas Temperature (°C) | ≤600 |
| Drainage Temperature (°C) | ≤90 |
| Sump Oil Temperature (°C) | ≤95 |
| Stable Speed Rate (%) | ≤8 |
| Cooling Method | Water cooling |
| Lubricating Method | Pressure and splash lubrication |
| Starting Method | Air motor |
| Dimensions (L×W×H, mm) | 3860 × 2040 × 2678 |
| Weight (kg) | 8100 |
Supply Scope
| Item | Details |
|---|---|
| 1. Diesel Engine | High-performance engine |
| 2. Radiator | Included for efficient cooling |
| 3. Special Spare Parts | Essential replacement parts |
| 4. Special Tools | Tools for maintenance and repair |
| 5. Exhaust Pipe and Muffler | Optional, ¥15,000/set ($2,327) |
| 6. User Manuals | Chinese and English manuals |
| 7. Documentation | Packing list, product test certificate, and quality certificate |
| 8. Packaging | Standard export wooden box |
Delivery Details
| Category | Details |
|---|---|
| Delivery Date | 1 month after the contract is effective, or as agreed by both parties |
| Delivery Location | Jinan Ji Chai Factory |
Quality Guarantee Period
| Category | Details |
|---|---|
| Warranty Period | 1 year after site commissioning acceptance or 15 months after delivery |
| Coverage | Manufacturing quality issues covered under “Three Guarantees” policy |
Packaging Information
| Component | Dimensions (L×W×H, mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|
| Engine Unit | 4300 × 1980 × 2500 | 5400 | 6300 |
| Radiator | 2000 × 1100 × 2000 | 2300 | 2700 |
| Intercooler and Separator | 2050 × 1550 × 1300 | 400 | 500 |
Why Choose G12V190PZL?
High Power Output: 1000 kW at 1500 r/min.
Durable Design: Built to perform in the toughest conditions.
Comprehensive Package: Includes essential tools, manuals, and optional mufflers.
Flexible Payment Terms: Easy and clear payment structure.
Reliable Warranty: Covers manufacturing defects with full support.
For more information or to place an order, contact us today!
