"JDEC" "G12V190PZL1" and spare parts for diesel engine

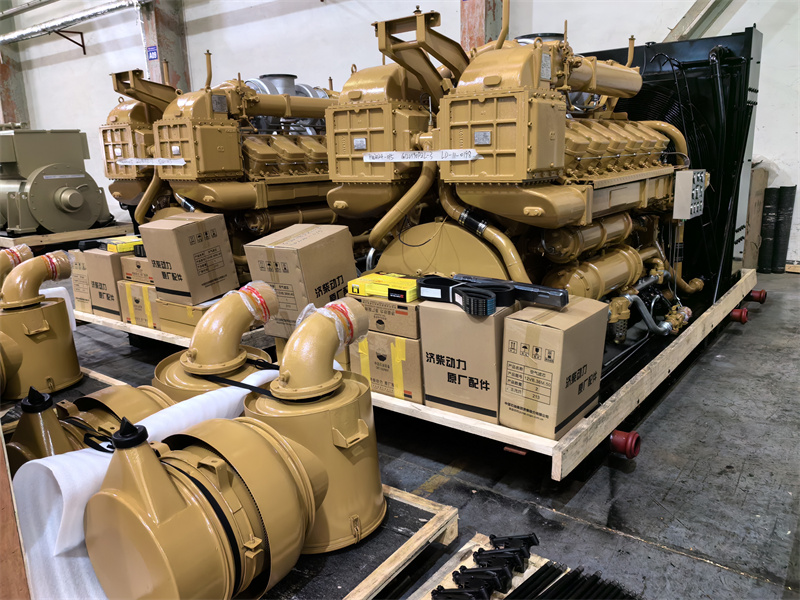

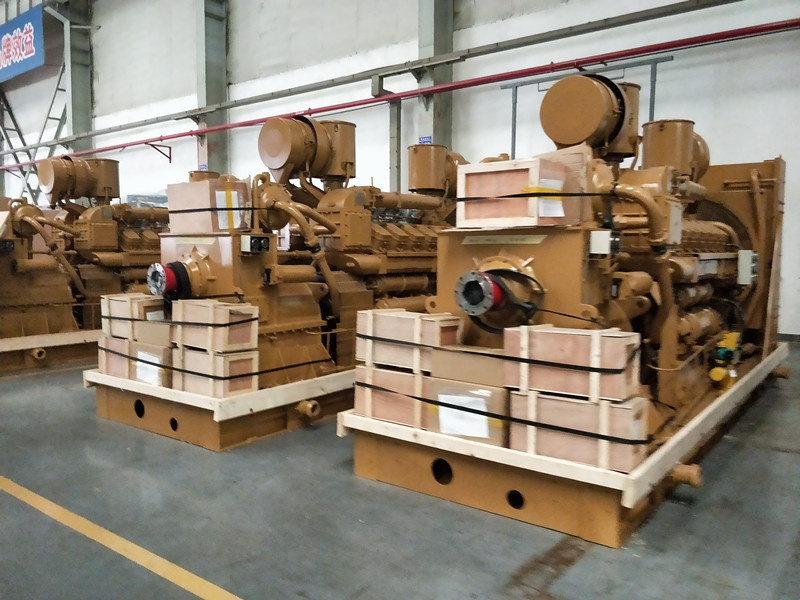

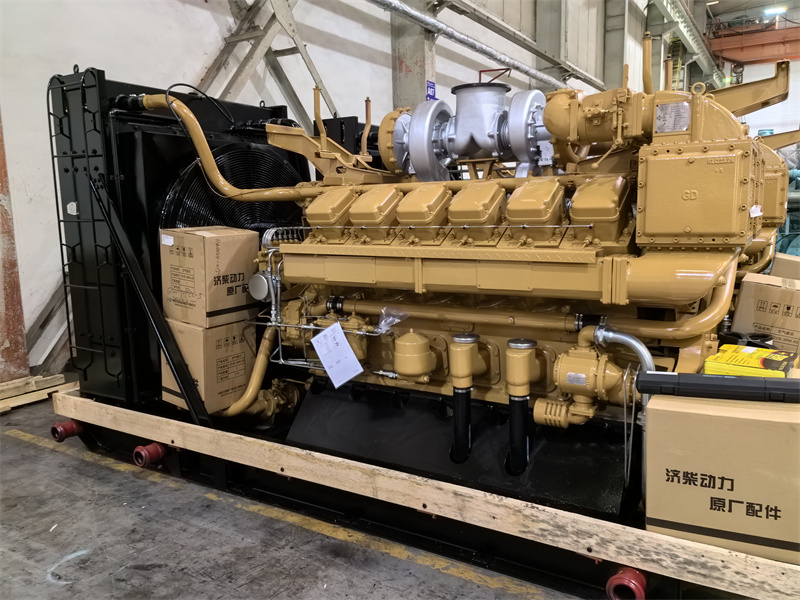

The G12V190PZL1 diesel engine, manufactured by Jinan Diesel Engine Co., Ltd. (JDEC) , named CNPC JICHAI POWER now, is a kind of diesel engine mainly used as drilling engine. It is widely applied in oil field and connect with mud pump. Except G12V190PZL1,JDEC also offers a variety of high-quality drilling engines like G12V190PZL-3,PZ12V190B,A12V190,12V135; Marine engine:B6190,G6190,Z12V190BC,G12V190BC and H16V190; Gas Generator: 500KW,1000KW,1200KW and 2000KW, G12V190ZDT and H16V190ZDT.
Maintaining the G12V190PZL1 diesel engine requires high-quality spare parts to ensure longevity and uninterrupted performance. Below is a detailed list of essential spare parts along with their respective specifications.
Cooling System Components
Water Cooling Radiator – JC2112-1301-199-200
Water Pump – 12VB.22.00B
Fuel System Components
Fuel Pump – BH6Z140ZP
Fuel Pump Regulator – T300/750Z
Pneumatic Fuel Pre-feeding Pump – 12VB.54.00C
Spray Nozzle in Assembly – 12VB.16.20E
Fuel Filter – 12V.10.30.03
Lubrication System Components
Oil Controller Bushing "JDEC" – Z12V.12.40.01
Oil Filter – 12VB.18.10B
Air Intake System Components
Air Filter (Upper) – 12V.36M.40
Air Filter (Lower) – 12V.36M.50
Engine Control and Monitoring Components
Tachometer with Sensor – 12VB.32.00D
Super Speed Safety Unit Assembly – 12VB.37.00
Setting the Automatic Brake When Oil Pressure is Low – 12VB.34.00A
Transmission and Power Components
Reducer 1.53, 900kV, 1500-1 (1275x1085x980) – JS-1200
Cardan Clutch Assembly – W51.5x870
Pneumatic Control System
Pneumatic Motor – 12VB.46.150F
Pneumatically Controlled Valve "JDEC" – 12VB.46.300.10
Sealing and Gaskets
Cylinder Head Gasket (Sealing Ring II) – 12VB.03.12A
Additional Components
Centrifugal Compressor – J170-1 20GJ.00E
Spring "JDEC" – Z12V.12.12.14A
Washer (Hardware) "JDEC" – Z12V.12.01A
Clutch-Plunger with Fuel Pump Spring – Z12V.12.20, Z12V.12.30
Plunger Pair Complete with Spring
| "G12V190PZL1" and spare parts for diesel engine | |||||||
| 1 | Diesel engine “G12V190PZL1”, installation supervision required (China) | “G12V190PZL1” | |||||
| 2 | Diesel CO 1000F/30 (190 series) (G12V190PZL) | ||||||
| 1 | Water cooling radiator | JC2112-1301-199-200 | |||||
| 2 | Reducer 1.53, 900kV, 1500-1 (1275x1085x980) | JS-1200 | |||||
| 3 | Pneumatic motor | 12VB.46.150F | |||||
| 4 | Pneumatic fuel pre-feeding pump | 12VB.54.00C | |||||
| 5 | Pneumatically controlled valve "JDEC" G12V190PZL1 | 12VB.46.300.10 | |||||
| 6 | Oil controller bushing "JDEC" G12V190PZL1 | Z12V.12.40.01 | |||||
| 7 | Spring "JDEC" G12V190PZL1 | Z12V.12.12.14A | |||||
| 8 | Washer (hardware) "JDEC" G12V190PZL1 | Z12V.12.01A | |||||
| 9 | Setting the automatic brake when the oil pressure is low | 12VB.34.00A | |||||
| 10 | Fuel pump regulator "JDEC" G12V190PZL1 | T300/750Z | |||||
| 11 | Tachometer with sensor | 12VB.32.00D | |||||
| 12 | Water pump | 12VB.22.00B | |||||
| 13 | Fuel pump | BH6Z140ZP | |||||
| 14 | Spray nozzle in assembly | 12VB. 16.20E | |||||
| 15 | Oil filter | 12VB. 18.10B | |||||
| 16 | Fuel filter | 12V.10.30.03 | |||||
| 17 | Air filter (upper) | 12V.36M.40 | |||||
| 18 | Air filter (lower) | 12V.36M.50 | |||||
| 19 | Cardan clutch assembly | W51.5x870 | |||||
| 20 | Centrifugal compressor | J170-1 20GJ.00E | |||||
| 21 | Cylinder head gasket (sealing ring II) | 12VB.03.12A | |||||
| 22 | Clutch-plunger with fuel pump spring | Z12V.12.20 | |||||
| 23 | Clutch-plunger with fuel pump spring | Z12V.12.30 | |||||
| 24 | Super speed safety unit assembly | 12VB.37.00 | |||||
| 25 | Plunger pair complete with spring | ||||||
