محرك الديزل جنان محرك الديزل تشيدونغ G12V190PZL الحفر

1 Diesel engine “G12V190PZL1”, installation supervision required (China)

2 Diesel CO 1000F/30 (190 series) (G12V190PZL)

1 Water cooling radiator     JC2112-1301-199-200

2 Reducer 1.53, 900kV, 1500-1 (1275x1085x980)     JS-1200

3 Pneumatic motor     12VB.46.150F

4 Pneumatic fuel pre-feeding pump     12VB.54.00C

5 Pneumatically controlled valve "JDEC" G12V190PZL1     12VB.46.300.10

6 Oil controller bushing "JDEC" G12V190PZL1     Z12V.12.40.01

7 Spring "JDEC" G12V190PZL1     Z12V.12.12.14A

8 Washer (hardware) "JDEC" G12V190PZL1     Z12V.12.01A

9 Setting the automatic brake when the oil pressure is low     12VB.34.00A

10 Fuel pump regulator "JDEC" G12V190PZL1     T300/750Z

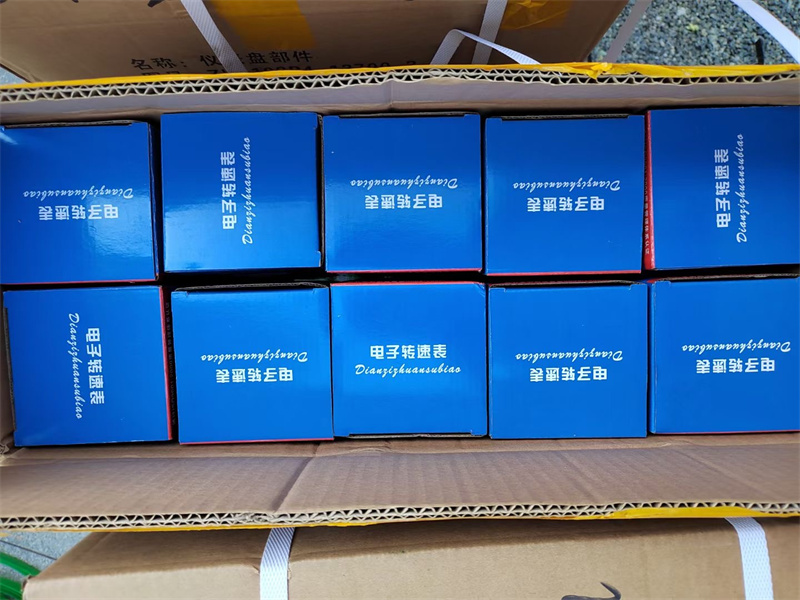

11 Tachometer with sensor     12VB.32.00D

12 Water pump     12VB.22.00B

13 Fuel pump     BH6Z140ZP

14 Spray nozzle in assembly     12VB. 16.20E

15 Oil filter     12VB. 18.10B

16 Fuel filter     12V.10.30.03

17 Air filter (upper)     12V.36M.40

18 Air filter (lower)     12V.36M.50

19 Cardan clutch assembly     W51.5x870

20 Centrifugal compressor     J170-1 20GJ.00E

21 Cylinder head gasket (sealing ring II)     12VB.03.12A

22 Clutch-plunger with fuel pump spring     Z12V.12.20

23 Clutch-plunger with fuel pump spring     Z12V.12.30

24 Super speed safety unit assembly     12VB.37.00

25 Plunger pair complete with spring
