Weichai Baudouin 12M26 series diesel engine generator (520kw-740kw)
1. Manufacturer Introduction: Baudouin
Baudouin, founded in 1918, is a renowned high-end diesel engine manufacturer with over a century of history. Headquartered in Cassis, France, the company specializes in the development and manufacturing of marine, power generation, and industrial power systems. Baudouin is globally recognized for its high reliability, durability, and excellent fuel efficiency.
In 2009, Baudouin became a part of Weichai Power Group, leveraging Weichai’s strong manufacturing capabilities and global market presence. This partnership has significantly expanded Baudouin’s product line, covering marine propulsion, land-based power generation, industrial applications, and military power solutions. Today, Baudouin is one of the world’s leading suppliers of diesel engines, with products meeting IMO, EPA, CCNR, and China Non-Road Stage III emissions standards, widely used across global markets.
2. 12M26 Engine Overview

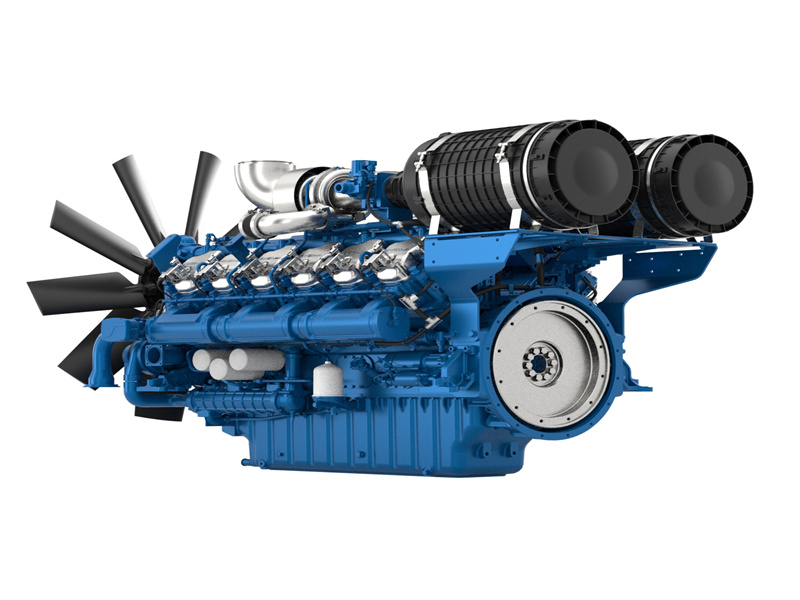

The Weichai Baudouin 12M26 engine is a high-power diesel engine from the M26 series, designed for marine propulsion, power generation, and industrial applications. It features a V12-cylinder configuration with water cooling, four-stroke operation, and turbocharged intercooling technology, ensuring outstanding power output and fuel efficiency.
| Product Series | 12M26 | ||||
| Product Model (50Hz) | 12M26D792E200 | 12M26D902E200 | / | / | / |
| Product Model (60Hz) | / | / | 12M26D792E201 | 12M26D902E201 | 12M26D1012E201 |
| Type | V-type, water-cooled, four-stroke | ||||
| Intake Method | Turbocharged & Intercooled | ||||
| Total Displacement (L) | 31.8 | ||||
| Cylinder - Bore × Stroke (mm) | 12-150×150 | ||||
| Rated Power (kW) 50Hz | 720 | 820 | / | / | / |
| Rated Power (kW) 60Hz | 720 | 820 | 880 | 920 | / |
| Standby Power (kW) 50Hz | 792 | 902 | / | / | / |
| Standby Power (kW) 60Hz | 792 | 902 | 968 | 1012 | / |
| Speed (r/min) | 1500/1800 | ||||
| Oil Capacity (L) | 113 | ||||
| Oil Consumption Rate | ≤0.3% | ||||
| Starting Method | Electric Start | ||||
| Control Method | Electronic Speed Regulation | ||||
| Emission | / | ||||
| Basic Dimensions (mm) | 2689×1524×1709 | ||||
| Net Diesel Engine Weight (kg) | 2910 | ||||
| Speed Regulation Characteristics | Meets G2 Performance Level | ||||
