Baudouin 12M26G900/5-1 diesel engine 695KW equipped with alternator

Diesel Engine Technical Specifications

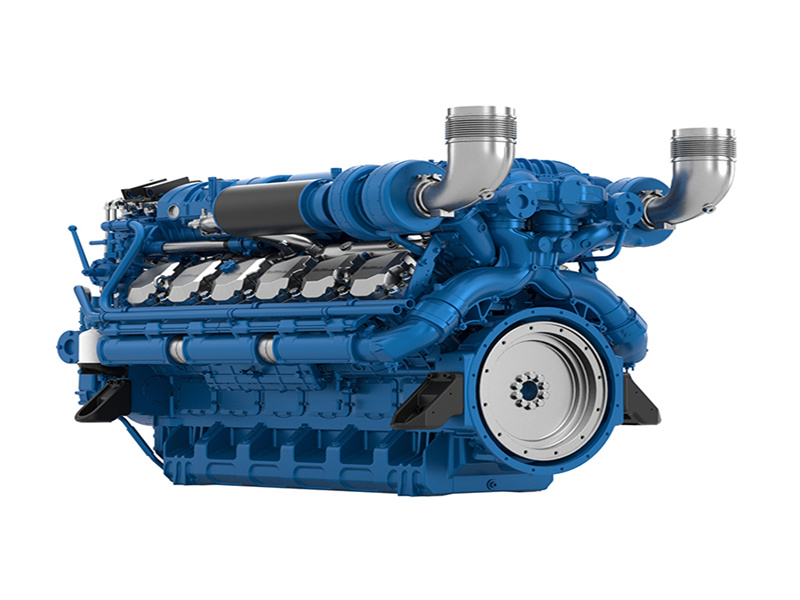

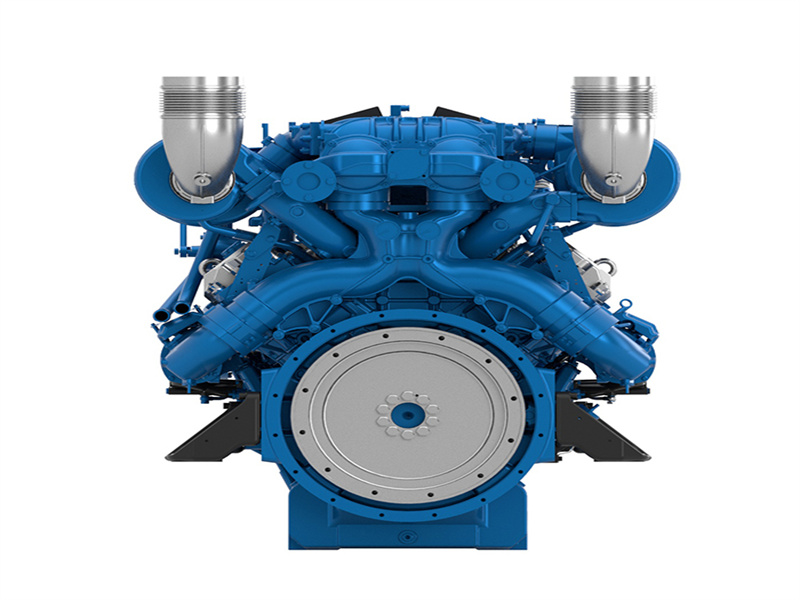

1. BAUDOUIN 12M26G900/5

• Max. Total Output Power (kWm/hp): 792/1065

• Cubic Capacity (L): 31.8

• Cylinder Arrangement: 12

• Bore x Stroke (mm): 150 x 150

• Compression Ratio: 15.7:1

• Governor Type: Electronic

• Revolution: 1500 RPM

• Intake System: Turbocharged

• Spray Pattern: Direct

• Cooling Pattern: Water Cooled

• Electric System (VCD): 24V

• Oil Capacity (L): 114

• Cooling Water Capacity (L): 154

• Fuel Consumption 50% Load (L/h): 90.8

• Fuel Consumption 75% Load (L/h): 133.1

• Fuel Consumption 100% Load (L/h): 173.7

2. BAUDOUIN 12M26G1000/5

• Max. Total Output Power (kWm/hp): 902/1213

• Cubic Capacity (L): 31.8

• Cylinder Arrangement: 12

• Bore x Stroke (mm): 150 x 150

• Compression Ratio: 15.7:1

• Governor Type: Electronic

• Revolution: 1500 RPM

• Intake System: Turbocharged

• Spray Pattern: Direct

• Cooling Pattern: Water Cooled

• Electric System (VCD): 24V

• Oil Capacity (L): 114

• Cooling Water Capacity (L): 154

• Fuel Consumption 50% Load (L/h): 100.8

• Fuel Consumption 75% Load (L/h): 146.5

• Fuel Consumption 100% Load (L/h): 195.5

3. BAUDOUIN 6M33G825/5

• Max. Total Output Power (kWm/hp): 748/1006

• Cubic Capacity (L): 19.6

• Cylinder Arrangement: 6

• Bore x Stroke (mm): 150 x 185

• Compression Ratio: 15:01

• Governor Type: Electronic

• Revolution: 1500 RPM

• Intake System: Turbocharged

• Spray Pattern: Direct

• Cooling Pattern: Water Cooled

• Electric System (VCD): 24V

• Oil Capacity (L): 64

• Cooling Water Capacity (L): 159

• Fuel Consumption 50% Load (L/h): 77.4

• Fuel Consumption 75% Load (L/h): 114

• Fuel Consumption 100% Load (L/h): 159.5

4. BAUDOUIN 6M33G750/5

• Max. Total Output Power (kWm/hp): 670/901

• Cubic Capacity (L): 19.6

• Cylinder Arrangement: 6

• Bore x Stroke (mm): 150 x 185

• Compression Ratio: 15:01

• Governor Type: Electronic

• Revolution: 1500 RPM

• Intake System: Turbocharged

• Spray Pattern: Direct

• Cooling Pattern: Water Cooled

• Electric System (VCD): 24V

• Oil Capacity (L): 64

• Cooling Water Capacity (L): 159

• Fuel Consumption 50% Load (L/h): 75.5

• Fuel Consumption 75% Load (L/h): 111.2

• Fuel Consumption 100% Load (L/h): 151.1

5. BAUDOUIN 6M33G715/5

• Max. Total Output Power (kWm/hp): 633/851

• Cubic Capacity (L): 19.6

• Cylinder Arrangement: 6

• Bore x Stroke (mm): 150 x 185

• Compression Ratio: 15:01

• Governor Type: Electronic

• Revolution: 1500 RPM

• Intake System: Turbocharged

• Spray Pattern: Direct

• Cooling Pattern: Water Cooled

• Electric System (VCD): 24V

• Oil Capacity (L): 64

• Cooling Water Capacity (L): 159

• Fuel Consumption 50% Load (L/h): 100

• Fuel Consumption 75% Load (L/h): 136

• Fuel Consumption 100% Load (L/h): 136

6. BAUDOUIN 8M21G660/5

• Max. Total Output Power (kWm/hp): 572/769

• Cubic Capacity (L): 16.72

• Cylinder Arrangement: 8

• Bore x Stroke (mm): 127 x 165

• Compression Ratio: 15:01

• Governor Type: Electronic

• Revolution: 1500 RPM

• Intake System: Turbocharged

• Spray Pattern: Direct

• Cooling Pattern: Water Cooled

• Electric System (VCD): 24V

• Oil Capacity (L): 45

• Cooling Water Capacity (L): 101

• Fuel Consumption 50% Load (L/h): 95.7

• Fuel Consumption 75% Load (L/h): 124.2

7. BAUDOUIN 6M21G550/5

• Max. Total Output Power (kWm/h): 484/651

• Cubic Capacity (L): 12.54

• Cylinder Arrangement: 6

• Bore x Stroke (mm): 127 x 165

• Compression Ratio: 16:01

• Governor Type: Electronic

• Revolution: 1500 RPM

• Intake System: Turbocharged

• Spray Pattern: Direct

• Cooling Pattern: Water Cooled

• Electric System (VCD): 24V

• Oil Capacity (L): 34

• Cooling Water Capacity (L): 47

• Fuel Consumption 50% Load (L/h): 69.6

• Fuel Consumption 75% Load (L/h): 109.3

8. BAUDOUIN 6M21G500/5

• Max. Total Output Power (kWm/h): 484/651

• Cubic Capacity (L): 12.54

• Cylinder Arrangement: 6

• Bore x Stroke (mm): 127 x 165

• Compression Ratio: 16:01

• Governor Type: Electronic

• Revolution: 1500 RPM

• Intake System: Turbocharged

• Spray Pattern: Direct

• Cooling Pattern: Water Cooled

• Electric System (VCD): 24V

• Oil Capacity (L): 34

• Cooling Water Capacity (L): 47

• Fuel Consumption 50% Load (L/h): 46.6

• Fuel Consumption 75% Load (L/h): 69.6

• Fuel Consumption 100% Load (L/h): 95.9
