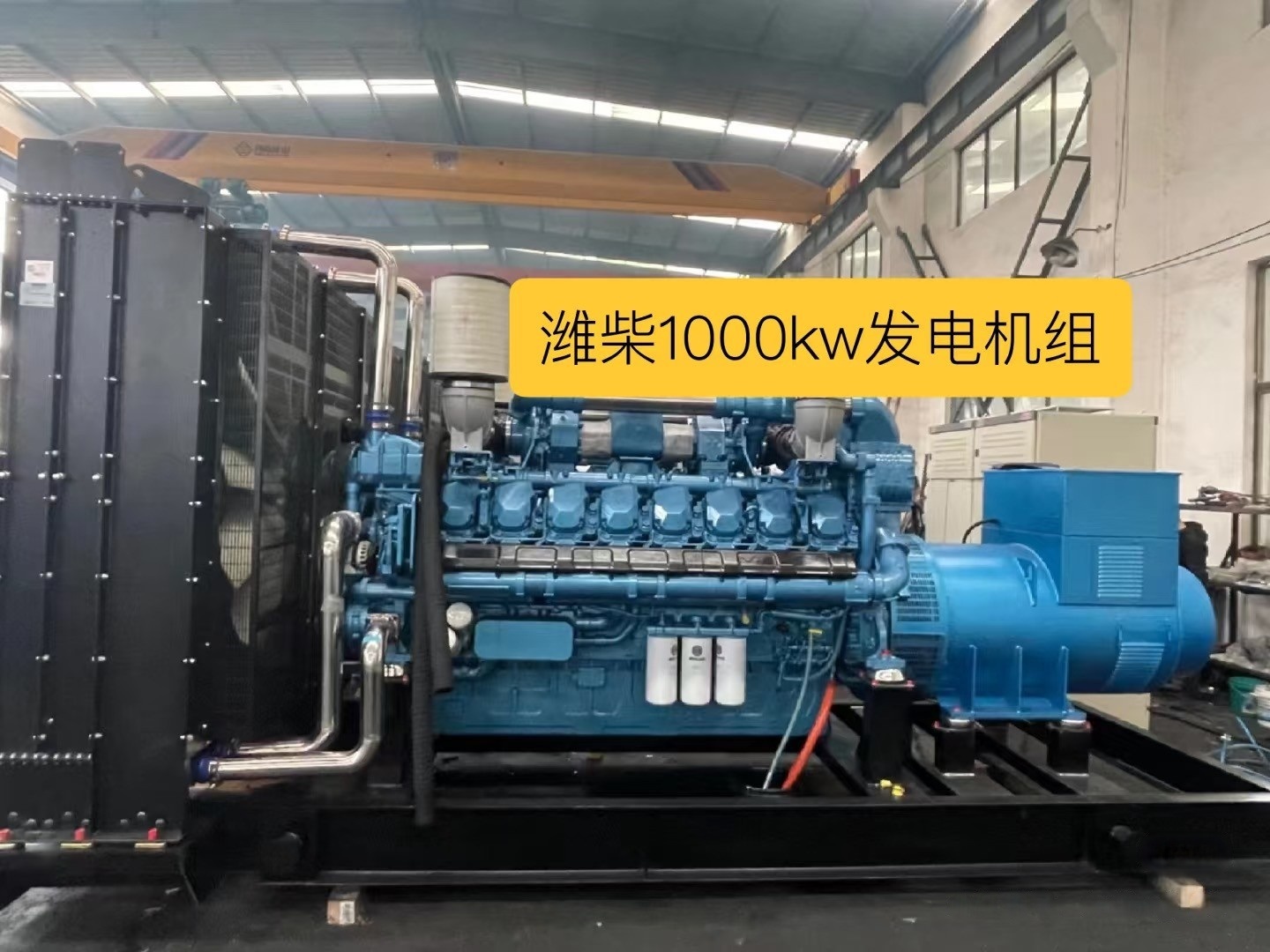

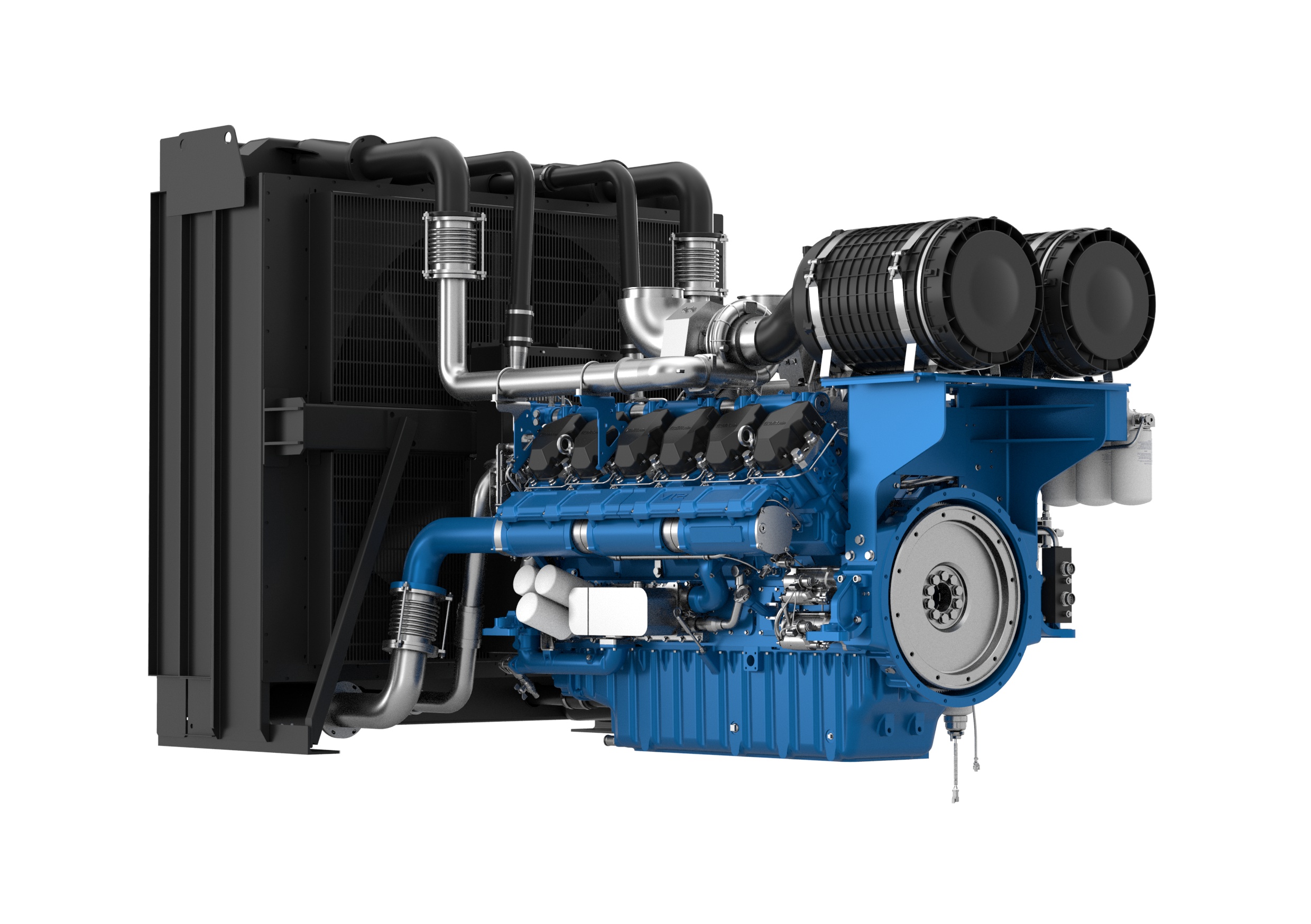

Weichai Baudouin 12M33 series diesel engine generator (1007-1500KW)

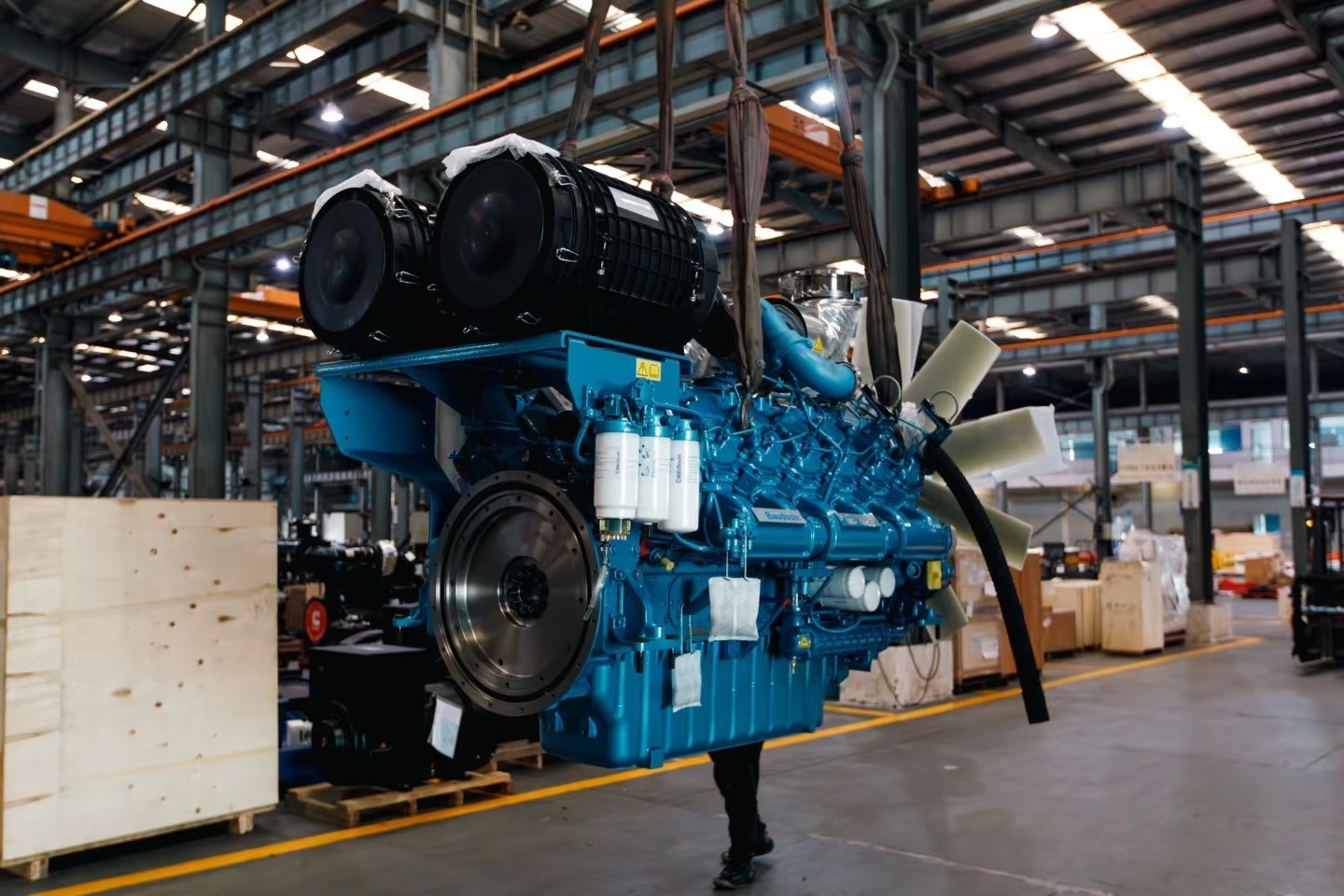

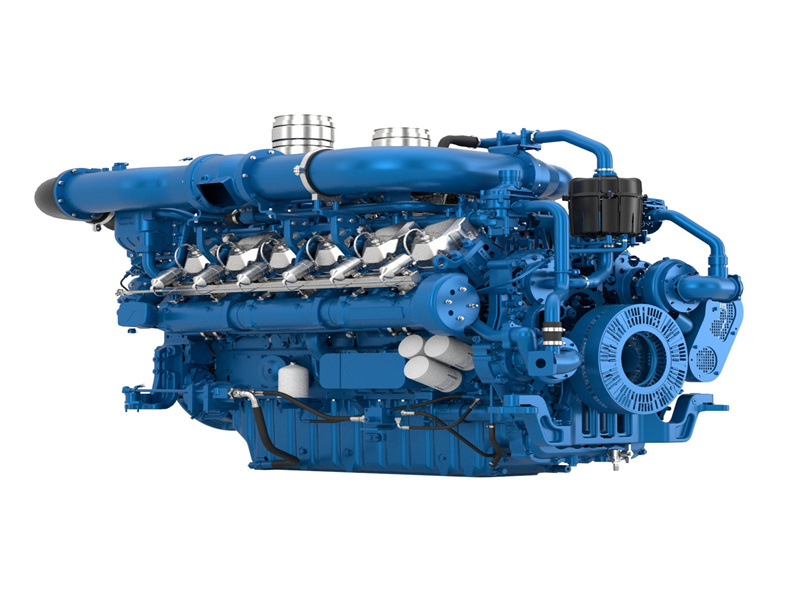

The Weichai Baudouin 12M33 engine is a high-power diesel engine from the M33 series, designed for marine propulsion, power generation, and industrial applications. It features a V12-cylinder configuration with water cooling, four-stroke operation, and turbocharged intercooling technology, ensuring outstanding power output and fuel efficiency.
Main Technical Parameters 12M33 | |||||
| 50Hz | 12M33D110E2/01 | 12M33D1210E200 | 12M33D1320E201 | / | 12M33D1108E110 |
| 60Hz | 12M33D1108E201 | 12M33D115E2/01 | 12M33D1320E201 | 12M33D1420E201 | / |
| Intake Method | V-type, water-cooled, four-stroke | ||||
| Turbocharging Method | Turbocharged and Intercooled | ||||
| Displacement (L) | 39.2 | ||||
| Cylinder - Bore × Stroke (mm) | 12-150 × 185 | ||||
| Prime Power (kW) | |||||
| 50Hz | 1007 | 1100 | 1200 | / | 1007 |
| 60Hz | 1007 | 1150 | 1200 | 1007 | / |
| Standby Power (kW) | |||||
| 50Hz | 1108 | 1210 | 1320 | / | 1108 |
| 60Hz | 1108 | 1265 | 1320 | 1108 | / |
| Speed (r/min) | 1500/1800 | ||||
| Oil Capacity (L) | 146 | ||||
| Oil Consumption Rate | ≤0.3% | ||||
| Starting Method | Electric Start | ||||
| Control Method | Electronic High-Pressure Common Rail | ||||
| Emission Standard | China Non-Road Stage III | ||||
| Basic Dimensions (mm) | 2774 × 1700 × 1736 | ||||
| Net Diesel Engine Weight (kg) | 3527 | ||||
| Meets G2 Performance Level | Meets G3 Performance Level | ||||
