Reverse Chassis Engine Coupler: Features, Specifications, and Applications

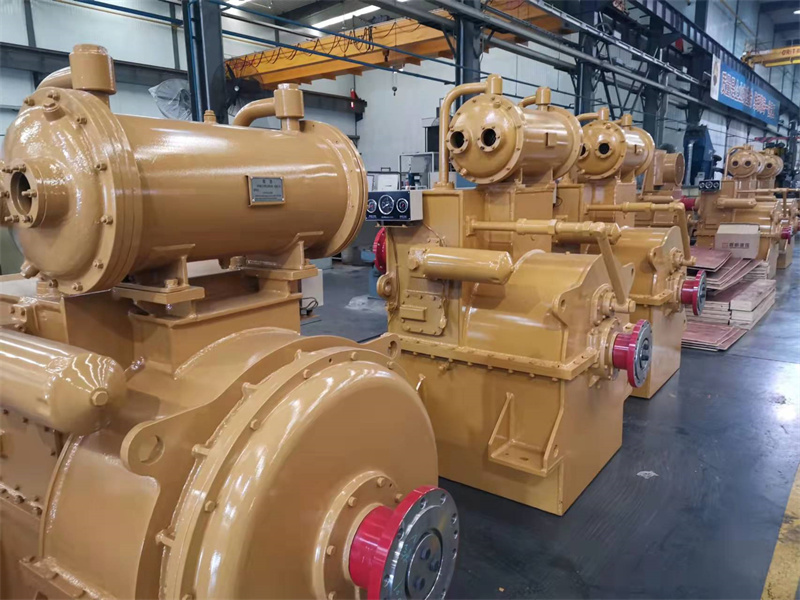

Engine Coupler

The Reverse Chassis Engine Coupler,also called converter or hydraulic coupling is a highly efficient, durable, and versatile solution for driving drilling rigs and powering mud pumps ranging from 500 to 1600HP. With its advanced design and robust construction, this coupler enhances the performance and longevity of diesel engines, making it an essential component for industrial and drilling applications.


Applications of Reverse Chassis Engine Coupler

  • Drilling Rigs: The primary use case for this coupler, ensuring smooth and efficient operation in oil and gas exploration.

  • Mud Pumps: Supports pumps ranging from 500 to 1600HP, making it suitable for heavy-duty tasks.

  • Industrial Machinery: Reliable power transmission for other heavy industrial equipment.



Key Features of the Reverse Chassis Engine Coupler

1. Versatile Compatibility

Compatible with 2000, 3000, and 4000-diesel engines, it is suitable for driving mud pumps ranging from 500 to 1600HP.

2. Adjustable Slippage for Enhanced Protection

The coupler’s slippage can be adjusted, providing added protection to the system by absorbing shocks and reducing mechanical stress.

3. Zero Abrasion During Operation

The coupler causes no abrasion during use and effectively absorbs engine vibrations, leading to a 40–60% increase in engine life.

4. Optimized for Drilling Applications

Specifically designed for drilling rigs, this coupler enhances operational efficiency and reliability in challenging environments.


Reverse Chassis Engine Coupler Specifications

1. 2000 Reverse Chassis Engine Coupler

Designed for medium-scale operations, this series is compatible with G12V190ZL and G8V190PZL diesel engines. Below are the key specifications:

RPM (r/min)Engine Power (kW)Engine ModelCoupler ModelSet ModelInput Power (kW)Efficiency (%)
1200735G12V190ZL-1YOTFJ750-22FlshACO735F-1/2269595
1300810G12V190ZL-3YOTFJ750-25FLshACO810F-3/2577095
1500900G12V190ZLYOTFJ750-33FLshACO900F/3386095

2. 3000 Reverse Chassis Engine Coupler

Built for high-power operations, this series supports A12V190ZL and BH12V190PZL engines, delivering exceptional efficiency for demanding tasks.

RPM (r/min)Engine Power (kW)Engine ModelCoupler ModelSet ModelInput Power (kW)Efficiency (%)
12001000A12V190ZL-1YOTFJ750-22FlshCO1000F-1/2286095
13001100A12V190ZL-3YOTFJ750-25FLshCO1100F-3/25106095
15001200A12V190ZLYOTFJ750-33FLshCO1200F/33116095
15001360BH12V190PZLYOTFJ750-33FLshCO1360F/33130095

3. 4012 Reverse Chassis Engine Coupler

The 4012 series is tailored for ultra-high-power applications, designed to work with L12V190ZL engines.

RPM (r/min)Engine Power (kW)Engine ModelCoupler ModelSet ModelInput Power (kW)Efficiency (%)
12001200L12V190ZL-1YOTFJ875-22FLshACO1200F/22120095
13001300L12V190ZL-3YOTFJ875-25FLshACO1300F-3/25130095
